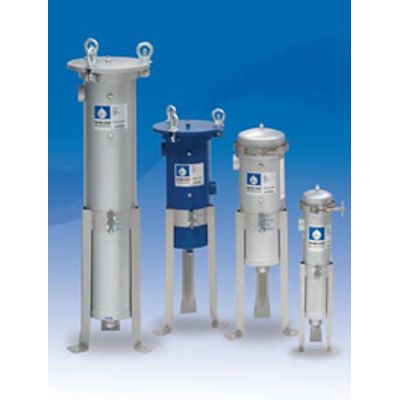

Shelco - Model BF Series -Single Bag Housings

• Designed for industrial and commercial filter applications
• Heavy duty construction for maximum durability
• 1/8" perforated stainless steel basket (optional perforations and mesh sizes available)
• #1 and # 2 Size Housings:
• Available in 316L Stainless Steel, 304L Stainless Steel or
• Carbon Steel construction for a wide range of chemical compatibility
• Clamp or Swing Bolt closures
• Stainless steel compression spring provides positive bag sealing
• Adjustable stainless steel leg assembly
• 1/4" FNPT gauge ports and 1/2" FNPT drain port
• #3 and #4 Size Housings:
• 316 Stainless Steel construction
• Clamp closure for easy bag change outs
• Optional compression spring and adjustable mounting legs

• Water
• Chemicals
• Food & Beverage
• Electronics
• Oil
• Inks / Paints / Coatings
• Coolants
• Pulp & Paper

Maximum Operating Pressure

• 150 psig (10.3 bar) @ 300°F (149°C)

Connections

• Inlet /Outlet:
• 2" FNPT (#1 and #2 Sizes)
• 3/4", 1" and 1 1/2" FNPT (#3 and #4 Sizes)
• Optional: RF Flanges or Sanitary Ferrules
• Drain Port: 1/2" FNPT (#1 and #2 Sizes)
• Gauge Ports: 1/4" FNPT - clean and dirty sides (#1 and #2 sizes)
• Vent Port: 1/4" NPT Plug

Gaskets

• Buna N
• Optional: EPR, Silicone, Teflon Encapsulated Silicone, Viton
• Baskets
• 1/8" perforated stainless steel
• Options: various perforation and mesh sizes

Materials of Construction

• Head / Shell:
• #1 and #2 Sizes
• 316L Stainless Steel, 304L Stainless Steel, Carbon Steel
• #3 and #4 Sizes
• 316L Stainless Steel
• Eye Nuts: Zinc plated steel
• Mounting Legs: 304L Stainless Steel

Options

• Side Inlet / Side Outlet (#1 and #2 sizes)
• 134 epoxy coating for seawater and corrosive applications

See ordering guide for complete selection of options
