Single Chamber Quartzite Filters
FromIdra Italia Srl.

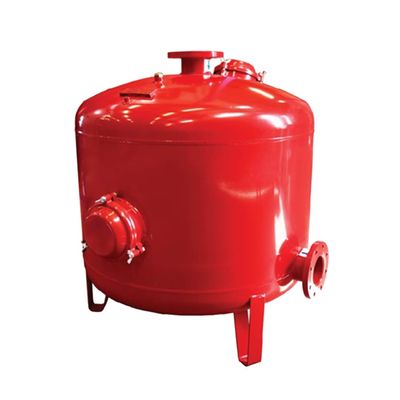

The quartzite filter is used for the initial filtration of water coming from rivers, canals, lakes and dams, it ensures the interception of organic particles and microorganisms which cause serious damage to micro-irrigation systems. In a perfect filtering system it is recommended to mount 2 quartzite filters in series. These types of filters are composed of a casing, usually made of hot-dip galvanized or painted steel, filled with quartzite capable of trapping impurities inside.
Most popular related searches
filter backwash
filter element
filter nozzle
gate valve
pressure gauge
backwash filter
automatic air vent valve
air venting valve
backwash
air valve
- Materials: Available in the hot-dip galvanized version or in the epoxy painted version.
- Supplied Elements: The filter is equipped with a dry pressure gauge, 3/4 air vent and gate valve.
- Filter Element: Quartzite (grain size 01.00MM -02.00MM)
- Max Pressure: 6 BAR 8 BAR 10 BAR
- Filter Nozzles: Vertical slot nozzles d.0.5 MM
- Backwashing the Filter: Manual filter backwashing; Creating a battery system.
