Single Injection and Destination System

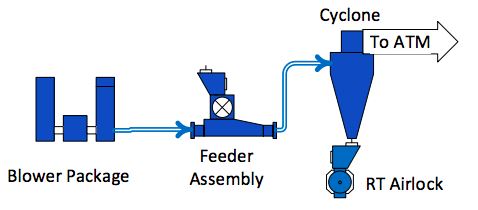

A positive displacement blower with silencers creates the air required for material transport. A feeder assembly is an airlock and allows introduction of material into the high pressure system. The high pressure piping has a thicker wall thickness than low pressure piping. Flatback elbows are used when making a direction change as the high pressure system uses fast velocities to transport material. The high pressure system can end at a target box, primary cyclone or primary filter. An airlock is located below the cyclone or filter as to not pressurize the object below the airlock. All air is discharged to atmosphere with a cyclone or filter.
