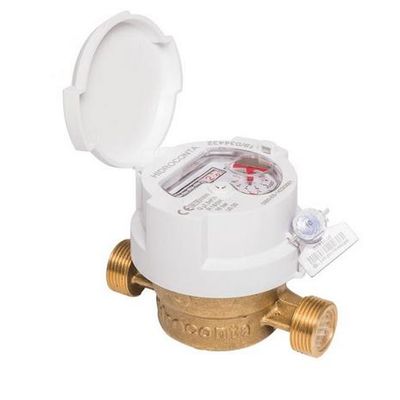

Hidroconta - Model Atlantis -Single Jet Water Meter
Single jet water meter Atlantis for domestic water consumption with MID homologation certified by the Spanish Metrological Centre (CEM). Atlantis is manufactured in copper alloy body and includes a pulse output pre-equipment. Straight sections are not necessary at the Atlantis water meter input or output U0-D0. Ratio accuracy R160. ATLANTIS water meters ranges from DN 13 to DN 20.
Hidroconta’s Atlantis domestic water meter is the perfect solution for homeowners’ associations and housing developments. It has been certified for use in public installations and does not require a high investment to install it.
Hidroconta develops drinking water meters that can feature communication technology, thanks to their inductive transmission systems, with which the consumption of cities can be easily controlled by simply tapping a button on your smartphone.
For cold water, up to 30ºC
- Hidroconta’s Atlantis water meter works in domestic water distribution networks under perfect operating conditions with cold water at a maximum temperature of 30ºC.
Copper alloy casing
- The domestic meter casing is manufactured in a copper alloy, as required to ensure that the meter can be used in a drinking water environment.
Direct reading of the 5-digit roller meter, displayed in m3
- The Atlantis drinking water meter makes it easy to read the water consumption, since its 5-digit roller display indicates the consumption of water of the home in cubic metres (m3).
High accuracy
- With an R160H accuracy rating, the Atlantis domestic meter offers the service required to detect leakages in the installation, allowing users to prevent damage to homes or buildings.
Fully dry and non-submerged clockwork
- The water meter’s clockwork is fully sealed and dry, avoiding the evaporation of water and making it easier to take consumed water readings.
Magnetic transmission system protected against external magnetic fields
- The Atlantis domestic water meter is a tamper-proof device, since its magnetic transmission system is protected against external magnetic fields that could distort the water consumption reading.
No need for straight sections at the U0-D0 meter’s inlet or outlet points
- The meter is easy to install and can be installed anywhere. The Atlantis domestic water meter does not need straight sections upstream or downstream, so it can be installed in very narrow spaces. In addition, the water meter’s clockwork dial can be adjusted in any position for easy reading.
MID drinking water certification. Directive 2014/32/EU
- The Atlantis domestic water meter has been certified with the MID drinking water model certification, approved by Directive 2014/32/EU.
Pre-equipped for pulse emitter
- The Atlantis domestic water meter can be easily and directly installed on inductive pulse emitters to read consumption and has been designed for easy installation on a communication module to read, control and compare consumption by simply tapping a button on your smartphone.
