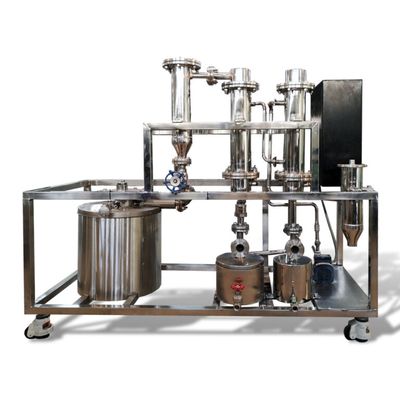

Single Line 3 Kg Waste Plastics Per Batch Pyrolysis Demonstrator Plant
The demonstrator pyrolysis plant efficiently converts mixed waste plastics or waste motor oil into diesel oil and lighter oil fractions. It is placed on a skid so it is easily transportable on a trailer. All components are pre-installed on the skid along with electric wiring & control panel. Ready for use. Just connect to electric power, water supply and start running the demonstrator plant. The demo plant consists of one distillation line, so different settings and catalysts can be researched one batch after the other. Note: this is not a production unit, but a demonstrator plant. It’s an ideal tool for research institutes, laboratories and universities that want to research, develop and demonstrate the principles of pyrolysis technology.
- Converts 3 kg waste plastics or 6 liters of WMO per batch in diesel oil and lighter oil fractions
- Comes with a single distillation line
- Perfect for pyrolysis demonstrator and research purposes
- Different settings and catalysts can be researched one batch after the other
- Fully automated PLC with touch screen display
- Easily transportable demonstrator design on a rollable skid
- Price ex. VAT, EXW The Netherlands
- demonstrator plant capacity: 3 kg of waste plastics (PE, PP and PS) or 6 liters of waste motor oil (WMO) per batch (batch time: 5 hours).
- HDPE (milk jugs), PP (baby bottles, yoghurt), LDPE (shopping bags, plastic wraps) and PS (plastic cutlery).
- These mixed plastics can be processed at the same time, no separation of these types is necessary.
- 85%-90% efficiency (85% for Plastics / 90% for WMO)
- revenue:
- diesel oil and lighter oil fractions (85%)
- waxy carbon black ash (15%)
- syngas (15%)
- electrical requirement: 3.5 kW @ 220v, 15A
- fully automated PLC controlled batch process
- demonstrator plant is built on a rollable skid and fixed inside a metal frame box
- machine dimensions (l/w/h): 1.855m x 0.762m x 1.5m
- shipping dimensions in wooden box: (l/w/h): 2m x 0.9m x 1.7m
- machine weight: 175 kg
- plant can be delivered to anywhere
- plant is operational directly after delivery
- simple installation:
- connect electric power cable
- connect to 200l water barrel for cooling
- start running the plant
Payments will be made as follows:
- 100% prepayment
Prices are ex. VAT and EXW The Netherlands. Any customs fees are the responsibility of the customer.
