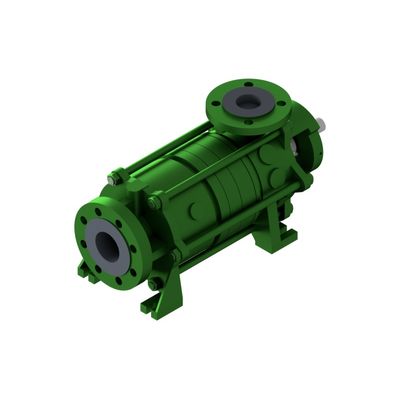

Dickow Pumpen - Model Type SC -Single Or Multi-Stage Self-Priming Horizontal Side Channel Pump

Type SC is a single or multi-stage self-priming horizontal side channel pump. In addition to the self-priming side-channel pumps have the advantage due to their high pressure factor, to work at relatively low pressure levels more economical than conventional centrifugal pumps when conveying small flow rates. Due to the axial suction supports and the upstream radial impeller, the Type SC achieves low NPSH values. The steps are sealed against the atmosphere by chambered O-rings. The pump shaft is mounted on the pressure side in a permanently grease lubricated roller bearing. A diffuser is designed as a pressure maintenance stage, so that when switching off the pump still sufficient fluid remains in the pump to allow a smooth start even when operating with geodetic suction height.
