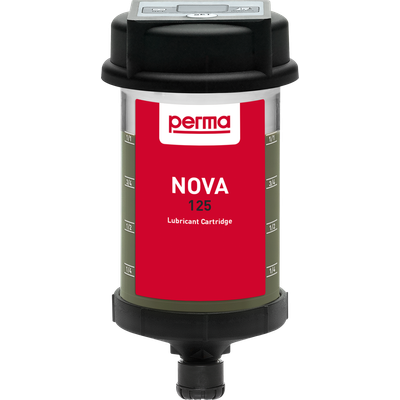

Perma - Model Nova -Single-Point Lubrication System
perma NOVA can be used in all application areas from -20 °C to +60 °C. A discharge period from 1 to 12 months can be entered via the setting button on the NOVA Control unit. The control unit then calculates the required quantity of gas for constant and reliable discharge while taking into account the ambient temperature. perma NOVA consists of a reusable control unit, a NOVA LC filled with grease or oil and a protective cover. NOVA LC is available in 65 cm³ and 125 cm³.
- Electronic control unit
- System operates reliably from -20 °C to +60 °C
- Ex-proof certification
perma NOVA was specifically developed for single-point lubrication of roller and sliding bearings, sliding guides, open gears, gear racks, shaft seals and chains located in areas with considerable temperature variations (e.g. outside installations). The lubrication system is protected against dust and water jets, subject to correct assembly of the individual parts (IP65). perma NOVA with LC 65 cm³ is ideal for the lubrication of electric motors.
- Drive: Electrochemical reaction via gas generating cell, Electronic temperature compensation
- Housing: Transparent plastics
- Discharge period: 1, 2, 3, ... 12 months
- Lubricant volume: 65 cm³, 125 cm³
- Operating temperature: -20 °C to +60 °C
- Pressure build-up: max. 6 bar
- Number of outlets: 1
- Protection class: IP 65
- Lubricants: Grease to NLGI 2 / oil
- Max. tube lengths: 2.00 m
- CE: ✓️
- Ex: ✓️
- IEC Ex: ✓️
- ANZEx: ✓️️
