Singer Valve - Model EPC -Single Process Controller
The EPC is a single process loop controller designed to complement the Singer Model 2SC-PCO Dual Solenoid Control Valve. Range of application is dependent on the process variable (feedback) transmitter used, which includes (but not limited to) common automatic control valve functions with conventional pilots.
Most popular related searches
dual solenoid valve
control valve
solenoid controlled valve
automatic control valve
solenoid valve
pressure flow controller
hazardous area
polycarbonate enclosure
level controller
flow control
Model EPC controller reads and compares the process feedback (process variable) 4 to 20 mA signal to the desired setting (set-point) 4 to 20 mA signal. Model EPC then accurately positions the valve to bring the process variable towards the set-point until they coincide.
- Simplified loop process controller with advanced P.I.D. implementation
- Quick configuration for any single process application such as flow and pressure
- Capable of remote 4 to 20 mA SCADA process set-point adjustment
- IP65 (NEMA 4) front panel sealing, 1/4 DIN package scalable readouts with super bright LCD
- Capable of local control of model 2SC-PCO dual solenoid valves for single process
EPC Single Process Controller
- The controller shall be a Singer Valve model EPC Controller, powered by 100 VAC to 240 VAC 50 / 60 Hz source. The controller shall come complete with configuration buttons and solid state construction with internal chassis capable of being removed for inspection.
- The controller shall accept a continuous process variable (feedback) 4 - 20 mA signal and a continuous set-point (command) 4 - 20 mA signal. The dual solenoid valve shall be positioned by the controller to bring the process variable towards the set-point.
- The controller shall have a built-in, adjustable, advanced P.I.D. optimization for accuracy.
- Deadband, zero, and span of 4 - 20 mA signal shall be easily adjusted via push buttons.
- The controller shall have a readout for valve operation.
- Prior to shipment, the controller shall undergo full function and operational tests.

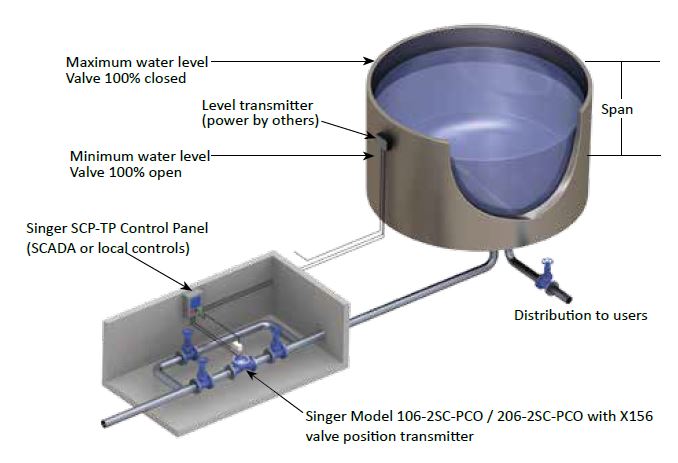

- Level control
- Pressure control
- Flow control
- Position control
- Data logging
- 420DC Control
- Display: Coloured Touch Screen Interface (standard)
- 3.5” TFT Transmissive Color, QVGA (320x240)
- Input Power Supply: 120VAC, 60 Hz, Typical Load: 0.5A, Full Load: 5A Max
- 240VAC, 50 Hz, Typical Load: 0.3A, Full Load: 5A Max
- 24VDC, Typical Load: 1A, Full Load: 5A Max
- Sensor DC Supply: AC Model: 24VDC, 2.5A Max
- DC Model: Isolated 24VDC, 1A Max
- Operating Ambient: -10 to +60ºC (14 to 140 ºF)
- Storage temperature: -10 to +60ºC
- Relative Humidity: 5 to 90% RH non-condensing
- Enclosure Material: Polycarbonate (standard)
- Enclosure Rating: NEMA Type 4, 4X, 12, 13
- IEC 60529, IP66, IP67
- Safety standard: UL 508A Industrial Control Panel
- Installation Location: not suitable for use in hazardous locations or for use with devices that are installed in hazardous locations
- Atmospheres: not suitable for use above 2000m or in explosive or corrosive atmospheres. Electrically conductive
- pollution must be excluded from the cabinet in which this controller is mounted
- Digital Input Rating: 24VDC, 2.4mA Max
- Alarm Output Rating: min: 24VDC, 1.5A Max
- (Dry Contacts) max: 250VAC, 1.5A Max
- Solenoid Relay Output
- Rating: 120VAC, 1A Max
- (Solid State Relays) 240VAC, 1A Max
- 24VDC, 1.5A Max
- Analog Inputs:
- Process Variable: 4-20mA. All configurable between limits
- Remote Setpoint: 4-20mA. All configurable between limits
- Analog output:
- Signal Type: scaleable 4-20mA signal (non-isolated)
- Retransmission Options: Process variable, Setpoint, or 420DC Actuator Control Signal
- Resolution: 12 bits
- Clock Accuracy: +/- 1 minute/month at 25°C
- Datalogging: Yes, adjustable sampling frequency up to 1 sample/sec
- Removable Media: MicroSD card (not included)
- Capacity limited to 32GB
- Communication: Modbus over Ethernet
- Modbus over Serial
- Dimensions:
- Polycarbonate Enclosure: 11.34”(288mm) Length x 11.34” (288mm) Width x 6.81” (173mm) Height
