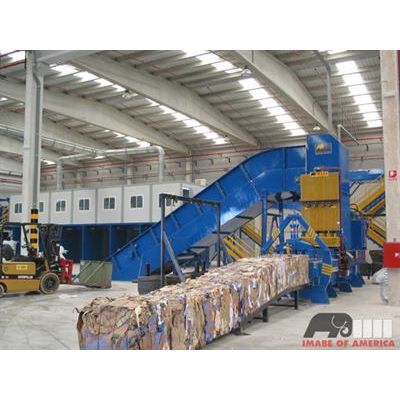

ImabeModel H-60/1000 -Single Ram Balers

SHARE

IMABE Single Ram Balers offers speed and efficiency with multi purposes baling needs. Our company is proving that single ram equipment are able to process fibers and plastics in highest efficiency levels.  With our unique tying system, we offer the lowest downtimes in the industry related with wrapping operation. Variable flow hydraulic system as standard in our design reduces energy consumption, helping to minimize the operational costs per ton processed, as it is proved also the parts usage reduction compared to old high / low pressure systems. Ask for our references in this product line in the US, where we are becoming the new leading company in high production single ram baling applications.

Most popular related searches
  • Baling capacity (Tons/h*) : 7 up to 12
  • Bale size : 39.4" K31.5"
  • Bale length  : Adjustable
  • Main Motors electrical power : 45 KW // 60 HP
  • Baling chamber dimensions (Lx W) : 71" x39.4"
  • Compaction specific pressure (P-s-i.) : 163
  • Horizontal auto.tie system (wires) : 4
  • Cycle per minute (empty) : 4
  • Hydraulic tank capacity (gal) : 415
  • Baler overall Dimensions : 30` 6"x7`xl3`9"
  • Baler overall weight (approx) (lb) : 37,400
