Greenwood Magnetics - Single Row Easy-Clean Grid Box
The Greenwood Single Row Easy-Clean Grid Box is an inline magnetic separator specifically designed for use in gravity feed chutes. It serves the essential function of extracting ferrous contaminants from powder or granular materials during processing, ensuring product purity. Crafted from stainless steel, this separator's flanged housing simplifies installation. A key feature is its ease of maintenance; by removing the drawer, powerful rare earth magnets are exposed, allowing any retained debris to fall away for hassle-free cleaning. Another advantage is the flexibility it offers, with design variants available such as options with angle deflectors to improve material flow or versions with dual parallel drawers for simpler handling. An application of this model was its provision to a major international food producer, equipped to filter loose tea with a processing speed of 5tph. Constructed to stringent food industry standards, the device includes a perspex inspection window and safety switches, and its internal welds are meticulously finished to prevent contamination risks.Most popular related searches
rare earth magnet
rare earth
magnetic separation
stainless steel flange
magnetic grid
stainless steel separation
tube cleaning
The Greenwood Single Row Magnetic Grid Box is an inline magnetic separator used in gravity feed chutes for the extraction of ferrous particles within powder or granular materials being processed.

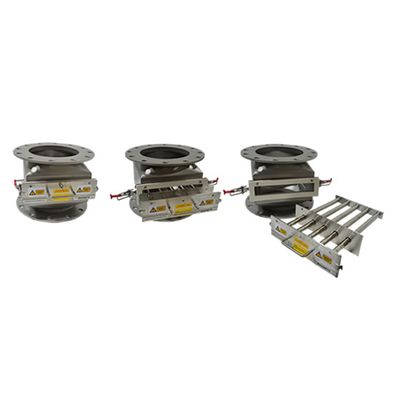

Manufactured in stainless steel, the flanged housing enables easy installation. The drawer slides out completely, giving access to the magnets. Once the drawer is removed, the inner tubes containing powerful rare earth magnets, slide out causing the debris to fall off enabling easy and effective cleaning.
The animation below shows the operation.
- Easily installed
- Direct access to magnets in chute
- Extremely easy to clean
- High intensity Rare Earth magnets
- Available with flanges to suit square and round pipelines
- Available with angle deflectors above and between the tubes for heavy contamination
- Standard height 300mm (with transitions)
- Standard height 150mm (without transitions)
- Can be manufactured to food industry standards
- Manufactured to your specific dimensions
- Available with several detachable drawers
- Tube spacing set according to your product being processed and rate of flow
- Magnet strength - standard up to 12,000 gauss, easy-clean tubes 10,000 gauss
