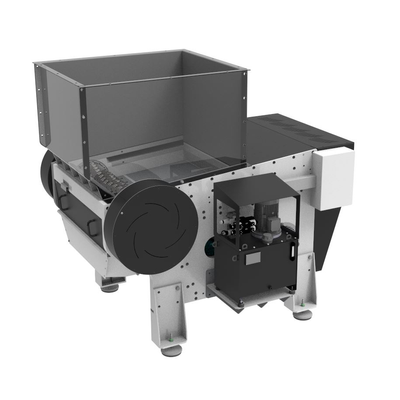

WRS - Model TM3711E -Single-Shaft Shredder

• Safety self-controlling module for safety devices supervision
• Electric motor 45 KW – 400V/50Hz (protection degree IP55 and inslulation class F)
• Multifunction PLC
• Automatic device for ram-feeder slowdown according to electrical absorption
• Electric control board (protection degree IP55)

Loading hopper in steel plate thickness 5 mm.

• Hopper dimensions: 1000
• L: 1330 mm
• P: 1080 mm
• H: 850 mm
• volume: 1,2 m³

• Industry 4.0 Smartbox One module
• Height adjustable shock absorbers
• Hopper with bulkheads moved by hydraulic cylinders
• Customizable colours

• Shredding body structure in carbon steel with section 60mm
• Structural components equipped with dowel pins to facilitate disassembly and re-assembly operations
• Grid moved by hydraulic cylinders
• Ram-feeder positioning sensor
• Different inserts (profile and kind of steel) according to the material to be processed
• Easy replacement of inserts
• Safety replacement of self-centerable counterblades

• Extended warranty on request
