GT - Model TLD & QFE -Single Source Calibration System
The control unit provides switching and control to enable manual and automatic operation of the facility (CAT. 3). The source can only be exposed when the access key from the Castell door lock is in the control unit. Windows control software to allow automatic control of the facility. Control computer and monitor.
Single Source Exposure Assembly
A radioactive source is housed in a lead shielded pot when in safe position. The source is raised using a motor/rack arrangement and is held up in position using a solenoid. The source is moved up a shielded tube and is exposed through a beam collimator. The source will drop if the power to the system is lost (fail-safe).
Source Storage Container
Lead pot with plug and hasp lock for storing radioactive source. Source handling tools are provided.

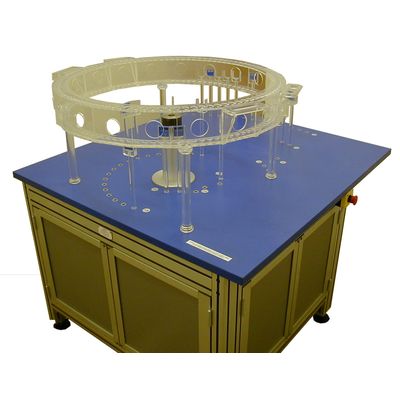

Exposure Table & Framework
The exposure table has radially positioned film holders permanently mounted and a removable low scatter acrylic circular QFE holder. The exposure table is mounted on an Al Alloy framework. The frame has panels on two sides and double
