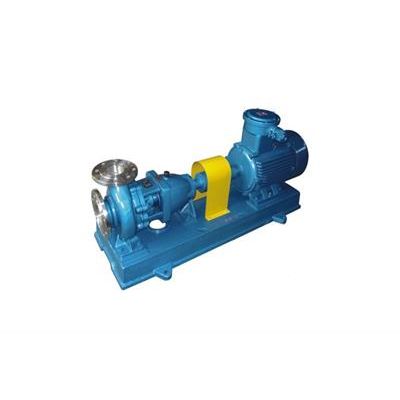

Tongda - Model IS65-40-200AD -Single Stage Centrifugal Pump
IS clean water pump is horizontal single-stage, single-suction and single-case centrifugal clean water pump.It is widely used for water supply and drainage of city-and-industry sectors,such as metallurgy,electric power station,chemical industry,textile,dyeing,ceramics, rubber,heating ,remaining heat utility,air condition,agricultural irrigation and drainage.IS clean water pumps have power-saving.low-noise,work-reliable advantages,etc.
Structure:
- Pump body
- axial suction
- Pump head
- single-case pump
- Shaft seal for choosing
- Packing seal;Mechanical seal
- Bearing
- radial ball bearing
Working conditions for application:
-
Medium:clean water or other physical-and-chemical property similar-to-water liquid
-
Medium temperature:no more than 80��C
Meaning of Serial No.
-
For example: IS65-40-200AD
-
IS: clean water pump
-
65:inlet diameter(mm)
-
40:outlet diameter (mm)
-
200:impeller diameter(mm)
-
A:impeller first cutting B:impeller second cutting C:impeller third cutting D: impeller outside diameter is increased
-
D:low speed (1450r/min)
- Inlet diameter
- 50mm~200mm
- Capacity
- 6.3~400m3/h
- Head
- 5~125m
- Speed
- 2900r/min; 1450r/min
