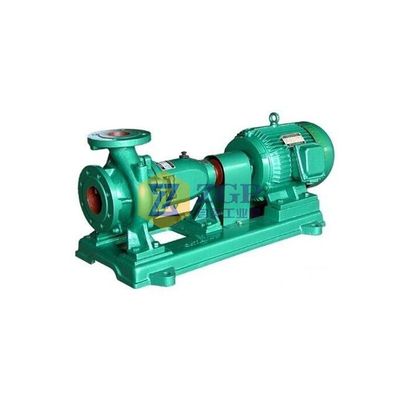

Zigong - Model IS Series -Single Stage Centrifugal Pump

FromSichuan Zigong Pump & Valve Co., Ltd.

SHARE

IS series is a single stage single suction centrifugal pump,mainly suitable for industry and city water supply, sewage drainage, and agricultural irrigation, therefore it is widely used.

Most popular related searches

centrifugal pumping

centrifugal pump

urban water supply

cantilever centrifugal pump

industrial water

Flow rate:Q=3.3~460m3/h
Total head:H=4~133m
Speed:n=1450rpm/2950rpm
S.g.:γ ≤1.1
Temperature:T=-0~80?
Pump diameter:50~200mm

IS series is designed based on the performance and dimension requirements of ISO2858.
Radially split casing design,back pull structure.
During maintenance,the rotary part can be removed from the casing without dismantle the pipelines.
The working chamber consists of pump casing and pump cover.

Single stage,single suction,cantilever type centrifugal pump.
Pump set consists of casing,pump cover,impeller,shaft,sealing rings,shaft sleeve and bearing housing...
Foot mounted,radial split casing
Both mechanical seal and packing seal are available
The rotary part is supported by bearing housing,bearings manage the axial and radial forces.

Mainly applied in the industry and city water supply,sewage drainage,and agricultural irrigation.
Suitable to pump clean water,or fluids have close physical and chemical characters.
