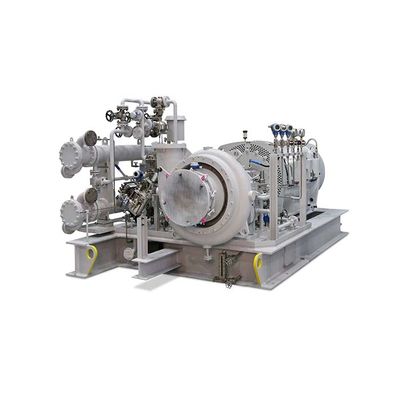

Howden - Model SFG Series -Single-Stage Centrifugal Turbo Compressors
The SFG series is a range of integrally geared single-stage centrifugal turbo compressors. The semi-open impeller (3D design) is overhung mounted directly onto the high-speed shaft of the gearbox. Due to this design and the resulting minimum mechanical losses, the SFG series offers a very high efficiency and is the preferred solution for demanding duties in clean process gas or air service applications, even in harsh environments.
Most popular related searches
centrifugal compressor
zero liquid discharge
process gas
evaporation zero liquid discharge
centrifuge
gravity drainage
zero discharge
process air
blower
clean air
Gas ?ows up to 250,000 m³/h can be handled. It provides state-of-the-art safety and reliability at lowest lifecycle costs to their owners.
The SFG series is optionally available in a design compliant to API Standard 672 or API Standard 617, Part 1 & 3.
Formerly known as:
- STC-GO (SFOG / SFNG / SFPG) or STC-GO (FO / FN / FP) - under Siemens
- SFOG / SFNG / SFPG - under Kühnle, Kopp & Kausch
- Flow rates from 3,000 up to 250,000 m³/h
- Impeller diameter up to 1120 mm
- Pressure ratio up to 3.5
- Driver: Electric motor or steam turbine
- Air Service
- Copper Converter Blower
- Industrial Evaporation Processes
- Zero Liquid Discharge
- Steam Assisted Gravity Drainage
- Process Gas & Chemical Plants (PA, MA, MMA, EO/EG, Acrylic Acid, Oxo-Alcohol, PE, Ammonia, CTL/CTG etc.)
