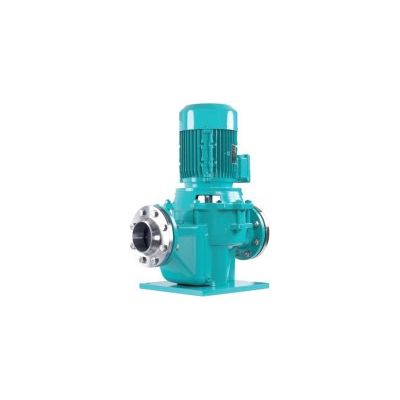

EDUR - Model Inline-Bloc LUB -Single-Stage Circulation Pumps

SHARE

All-purpose single-stage circulation pumps in inline-design for the use in water supply, house and building technique, shipbuilding, cooling technology, machine and apparatus engineering.  Space-saving alternative to standard bloc-pumps. For clean or slightly polluted liquids.

Most popular related searches
cooling system
water supply
process gas
axial impeller
inline pump
  • High Energy-Efficiency
  • Technical Superiority
    • open impellers without axial thrust or balanced closed impellers
    • compensation of radial forces by means of diffuser devices in the annular casing
  • Process Reliability
    • partial gas supply
    • wide performance curve characteristics
    • flat or steep characteristic curves
    • excellent control mode
  • Easy Installation
  • Easy Maintenance
    • pull-back design
    • removal coupling
  • Application
    • operating pressure up to 10 bar
    • temperature -40° C up to +140° C
    • viscosity up to 115 mm²/s
