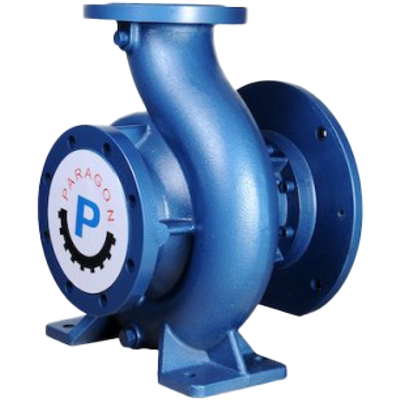

Paragon - Model PAZ Series -Single Stage Close Coupled Centrifugal Pump
PAZ single stage close coupled centrifugal pump with performance and dimensions in accordance with DIN24255 standard, horizontal installation. The back-pull-out construction allows the pump to be disassembled without disturbing the suction and discharge pipework.
Most popular related searches
close coupled centrifugal pump
centrifugal pumping
centrifugal pump
close coupled pump
coupled pump
water supply
heating circulator
cooling water conditioning
cooling water supply
air conditioning
- Discharge Flanges:1.25 inches to 5.9 inches (32mm to 150mm).
- Flange Standard:BS 4504 PN 16.
- Optional Flanges:ANSI 150 RF.
- Flowrate: Up to 2422 GPM (550 M3/Hr).
- Total Head:Up to 492 feet (150 meters).
- Max Working Pressure:232 psi (16 bar) standard.
- Maximum Temperature:212°F (100°C).
- Minimum Temperature:-4°F (-20°C).
- Water supply.
- Cooling water.
- Air conditioning.
- Heating circulation.
- Industrial fluids.
