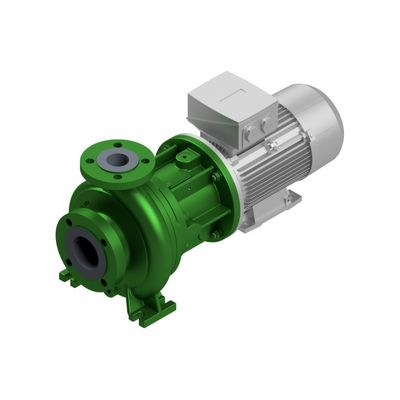

Dickow Pumpen - Model Type KMB -Single-Stage Volute Casing Pump
Type KMB is a volute casing pump with housing dimensions according to ISO 2858 and simple magnetic coupling. The size selection is limited. The pump has a permanent magnet coupling, and the containment shell hermetically seals the fluid to the outside. The bearing of the pump shaft takes place in a SiC plain bearing. The direct mounting of the drive motor eliminates additional bearings and the mechanical coupling.
Most popular related searches
volute casing pump
bearing lubrication
explosion protection
environmental engineering
gasket sealing
marine technology
gaskets
Type KMB
single-stage volute casing pump according to ISO 2858 with magnetic coupling
- Q max: 100 m³/h**
- H max: 80 m**
- operating pressure: 16/24/40 bar*
- temperature: 180 °C*
oil & gas, chemistry, petrochemistry, offshore, ship technology / marine, refueling equipment & aviation, industrial heating systems / heat carrier, tank storages / tank farms, renewable energy / environmental engineering
- Q max: 100 m³/h**
- H max: 80 m**
- operating pressure: 16/24/40 bar*
- temperature: 180 °C*
- max rotational speed: 3500 min−1
- gasket/mechanical seal: magnetic coupling
- installation: horizontal
- self-priming: no
- bearing: plain bearing
- lubrication: grease
- materials: duplex, Ni-based, spheroidal graphite iron / cast steel, austenitic steel
- standards: ISO 15783
- explosion protection: category 2 / zone 1
* higher pressures and temperatures on request
** depending on size and speed
