Singleton - Model SCCH -Salt Fog Chambers

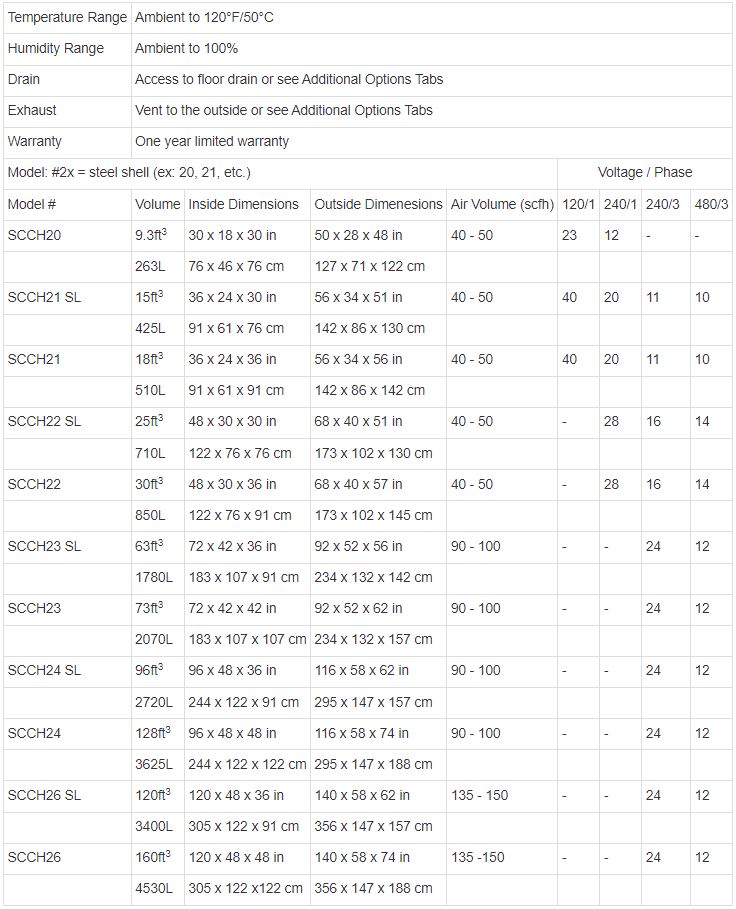

Available in sizes ranging from 9.3 cu. ft. to 2,508 cu. ft., Singleton SCCH accelerated corrosion test chambers can be used for Salt Fog, CASS, Humidity, Water Fog and many other test methods.They are designed to provide the accuracy and flexibility necessary to meet today`s demanding test methods. All Singleton testing chambers are easy to use and operate.
- Shell - Double wall, water jacketed design for accurate temperature control and stability.
- Lining - Oven cured, continuous polymer coated interior for maximum service life and corrosion resistance.
- Cover - Clear acrylic cover allows for full view of test specimens.
- Opti-Fog™ - Patented fog generation towers with baffling per ASTM B117.
- Humidifying Tower – Saturates incoming air supply with humidity to ensure accurate and stable operation. Low water sensor system for heater protection.
- Control System
- Individual temperature controls with selectable °C or °F units
- Exposure zone dry bulb
- Exposure zone wet bulb
- Humidifying tower
- Precision air regulator assembly
- 4” Certified Pressure Gauge, 0-30 psi
- Air flow meter, 0-50 scfh
- Individual temperature controls with selectable °C or °F units
- Solution Reservoirs – 10-gallon DI water and 24-gallon solution reservoirs with patented Level-Matic™ level control.
- Certification – Calibration traceable to NIST.
- Start Up Kit - 80cm2 condensate collection assemblies, (1) 50lb bag of salt, (1) specific gravity hydrometer, (1) package of five PTFE filter cloths, (2) support racks, (2) support bars, (1) 15-30° specimen tray.
Chamber
Standard Salt Fog Testing Start Up Package
Includes the necessary collector funnels with graduated cylinders, one 50lb bag of salt, and one specific gravity hydrometer. All items comply with ASTM B117. Also available as individual items. {included with purchase of a new salt fog chamber}
External Condensate Collection Package
Provides external sampling of fog condensate collection without opening chamber or interrupting test. Complete with two condensation collector assemblies mounted externally on stand and piped to collector funnels mounted in exposure zone.
Flanged Access Ports
Allows access to specimens while under test. Industry standard 2", 3", 4", 6" and custom sizes available. Includes a bolted plastic cover to seal the port when not in use.
Reversed Cover Opening
Control Panel and Humidifying Tower on left side of cover opening. Ideal for side-by-side placement or units facing each other.
Insulated Shell
For operating temperature above 120° F. Thermal insulating jacket on four walls and bottom of chamber exterior. Includes CPVC high temperature fog dispersion tower construction and components.
Rubber Lining
For operating temperature 120° F- 140° F, or SWAAT Testing. Interior protective lining. 1/8” thick semi-hard natural rubber.
Ontario Hydro Wiring Package (Canada Only)
Wiring to conform to Ontario Hydro Wiring Standards.
Exhaust
Re-circulating Exhaust Condenser System
System condenses and collects chamber exhaust into a separate 24 gallon reservoir mounted on Level-Matic® stand. System is completely self-contained, no outside vent required.
Drain
Salt Solution Convenience
Auxiliary Salt Solution Mixing and Storage Tank
Separate polypropylene tank with re-circulating/mixing pump and filtration system for homogeneous/uniform solution makeup. Pump system also permits transfer of solution to test apparatus. Includes aeration/ air sparger system and controls for unattended mixing of salt solution. Mounted on a portable stand with casters. Available in 55-gallon capacity. Very convenient for multiple chamber installations.
Test Packages
Electrolyte Solution Spray / Rainfall Test Manifold
Assembly includes a water regulator and distribution manifold with multiple nozzles to provide spray over the entire exposure zone.
