ARCModel CST -Sintered Cartridge Filter

SHARE

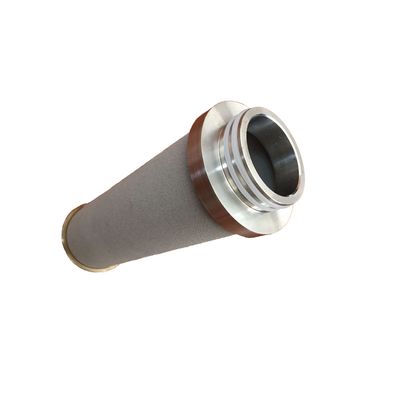

CST Sintered filter made of stainless steel 316,use for steam filtration,steam was popular used in the industrial process, and the require of the steam quality is more and more higher, the high quality steam insure the system operation continuous and higher effective. Arc developed this filter special for the steam quality improve.

Most popular related searches
  • Outer Cage:  Stainless Steel
  • Inner Cage: Stainless Steel
  • Endcaps: Stainless Steel
  • O-ring & Gasket: Silicone, EPDM
  • Filter Media: Sintered Stainless Steel
  • Ratings 0.5-75 micron
  • High work temperature
  • Fine Filtration effiencicy
  • Long service life
  • FDA listed components
  • OD: 2.5"(60mm)
  • Length: 10",20",30",40"

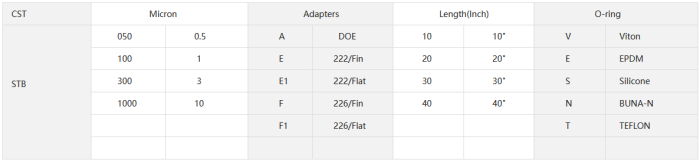

  • Part No=STA+Micron+Adapters+Length+O-ring
  • EG: A 40 inch 1um filters with 226/Fin adapters and Viton O-ring
  • The Part NO:STB100F40V
