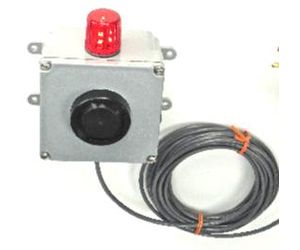

Gizmo Engineering - Model SA-3 -Siren Alarm Box Annunciator
The Siren Alarm Box generates a painfully loud 115 dB 2feet. The loudest 12VDC buzzer in existence. Combined with a strobing beacon LED, alarms cannot be missed.
- Loud whooping tone penetrates through other noise. 115 dB @2 feet!
- Weatherproof enclosure. Piezo buzzer even works under water. NEMA 4X (IP66) ingress protection.
- Flashing Beacon LED is visible in daylight.
- Various behaviors including snooze alarm with silencing button option.
- 20 feet of cable included.
- Compact - box measure only 4x4x2 inches.
The ultra loud siren annunciates an alarm over a great area or distance, or through very loud ambient noise.
Model SA-1
It takes an output 12VDC, 12VAC, 120VACand converts it to a bright LED flashing and a painfully loud whooping tone. (like emergency vehicles)
Model SA-3
It takes a voltage or contact close and converts it to a loud siren like model SA-1, but includes the ability to silence the alarm temporarily with the pushbutton.
Simple installation, when installed with onther Gizmo Engineering products, this siren box works the same as the other products: when the audio alarm is silenced, the LED beacon conitnues to flash until the alarm is reset. A snooze alarm for the siren is optional.
Includes: weatherproof box, siren piezobuzzer, 20 feet of cable.
- Power consumption (alarm) : 40 mA
- Voltage input : 3-12VDC
- Piezo buzzer volume : 110 dB at 1 m
- Piezo buzzer diaphragm : stainless steel
- Operating temperature : -40C to 65C
- Box size (mm). : 4x4x2"
- Buzzer housing : polystyrene
- Box material : PVC
- Cable : 8x24 gage wire,
- Cable jacket : 0.032" outer jacket
- Beacon LED : 9SMD/50mm
- Beacon LED lens : polycarbonate (Lexan)
