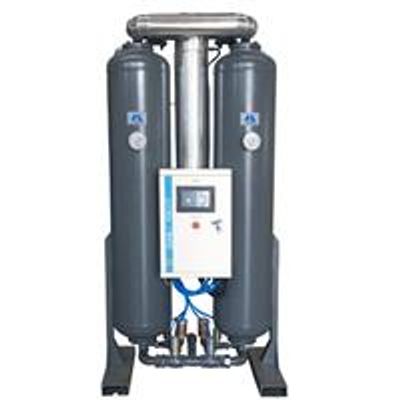

Model SLAD Series -Heated Type Desiccant Air Dryer
Working Conditions And Technical Specifications. Air inlet temperature:20-45℃ . Air inlet pressure:0.6-1.0MPa. Regeneration air consumption:≤7%. Pressure loss:≤3% of the inlet pressure. Inlet air Oil content:≤0.01PPM. Pressure dew point:-40℃ Standard type. Working way:Two towers alternate and continuous work. Control method:Computer program control/PLC control. Regeneration mode:Micro-heating regeneration.
Most popular related searches
desiccant air dryer
air dryer
air intake
desiccant dryer
air diffuser
activated alumina
workplace air conditioning
air conditioning
workplace air
Power supply
- 1-6 Nm3/min AC220V/50Hz
- 8Nm3/min and above AC380V/220V/50Hz
- Cycling time:T=2-6 hours
- Installation way:Indoor installation without foundation
- Note:Above parameters pressure standard is based on standard pressureof 0.7 MPa
- (Other special requirements can be customized)
- High-quality switching valves,stable and reliable,can guarantee the integrity of the workflow and extend the working life of components
- Use the high activated oxide alumina with uniform shape and size,high strength,with low dew point,producing less dust with long lifetime
- Adjust teh amount of regenerated gas according to the operation load demand of equipment to achieve teh energy-saving effect
- Special air diffusion device,automatic generation to ensure the lifespan of the air dryer
- Programmable micro-computer controller,can adjust the adsorption and generation time to meet your satisfied dew point
