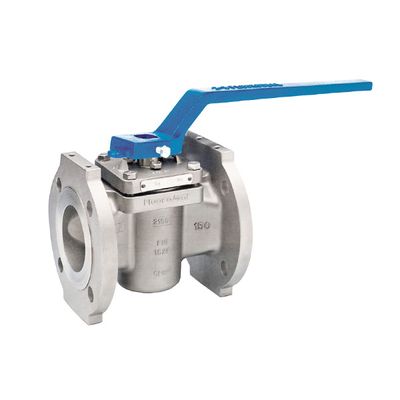

FluoroSeal - Sleeved Plug Valves
FromFluoroSeal Inc.
FluoroSeal Non-Lubricated, Sleeved Plug Valves incorporate state-of-the-art PTFE fluorocarbon seat design. With little required maintenance and trouble-free operation, a high integrity bubble-tight seal is provided both in-line and to atmosphere. The engineered design features contributing to the superiority of our product are described as a function of their specific purpose to ensure a trouble-free extended life.
Most popular related searches
plug valve
flow indicator
directional drill
position indicator
waterway flow
valve operator
waterway
waterway protection
drilling regulations
- Bi-directional in-line bubble-tight seal independent of line pressure
- Multiple external bubble-tight seals independent of line pressure
- Direct mechanical three-point adjustment independent of line pressure
- Independent travel stops
- Full encapsulation and retention of all leading edges of PTFE sleeve and top seal components
- Full lip at port openings protects PTFE sleeve
- Contoured waterway ensures minimum flow turbulence characteristic
- No body cavities to entrap flow media
- Positive flow direction indication
- Drilled and tapped flange actuation-mounting pads independent of cover and top seal assembly. This feature is optional on lever-operated valves (1/2" thru 4") in HASTELLOY®, INCONEL®, Titanium, and Zirconium alloys.
- 2-Way
- Class 150 lbs Flanged
- Class 300 lbs Flanged
- Class 600 lbs Flanged
- Class 150/300 lbs Screwed Ends
- Class 150/300 lbs Socket Weld Ends
- Full Port Class 150 lbs Flanged
- Full Port Class 300 lbs Flanged
- Full Port Class 600 lbs Flanged
- Multiport
- Class 150 lbs Flanged
- Class 300 lbs Flanged
- Class 150/300 lbs Screwed Ends
- Class 150/300 lbs Socket Weld Ends
- Severe Service (FE)
- Special Service
- Caged Control
- Special Cleaning
- Double Block & Bleed and Sampling
- Fire Seal
- HF Alkylation
