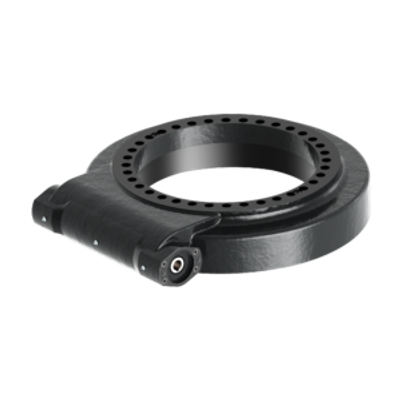

Cone Drive - Slew Drive for Heavy-Duty Applications
Cone Drive's slew drive technology offers a high gear ratio in a single gearing stage, designed for smooth rotational performance. The drives are built into a low-profile, self-retaining housing that is installation-ready and optimized for both weight and performance. They are particularly adaptable, featuring robust shock resistance, long lifespan, and smooth rotation. In applications powered by electric motors, Cone Drive provides a double reduction slewing drive to ensure a clean and efficient operation. The slew drives are also capable of handling combined tilting, radial, and axial loads. Additionally, the products come with strong shock resistance, competitive lead times, and a 2-year warranty. They are available in various sizes and housing types, including options with dual worm gears and different sealing configurations for enhanced durability.Most popular related searches
Cone Drive’s slew drive technology provides a large ratio in a single gearing stage. The slewing drives are assembled into a low profile, self-retaining, and ready-to-install housing, optimized for weight and performance. Our highly adaptable slew gearing features strong shock resistance, long life performance, and smooth rotation.
For applications driven by an electric motor, Cone Drive offers a double reduction slewing drive to provide a clean, efficient solution.
- Low Profile
- Capable of Combined Tilting, Radial, and Axial Loads
- Strong Shock Resistance
- Long Life Performance
- Competitive Lead Times
- 2 Year Warranty
- Sizes: 3 thru 28 in
- Housing Options: Open, closed, high strength
- Output Torque: < 44,220 lb-ft
- Holding Torque: < 116,535 lb-ft
- Overturning Moment: < 228,644 lb-ft
- Sealed Drive Available
- Optional Dual Worm Design
