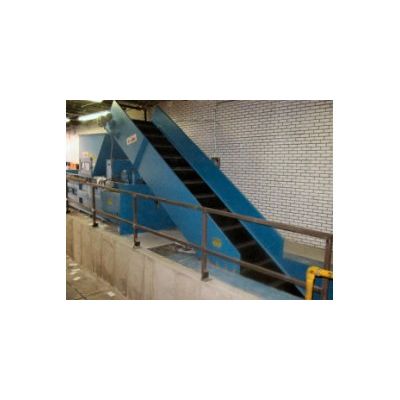

Summit - Model SA Series -Slider-bed Above-floor Conveyors

24`, 36`, 48` wide. Adjustable take-up at tail pulley assembly. Above-ground hopper, 48` feed height, flared to belt width 30`. PVC belt with 2` cleats 18` OC (available smooth-top, rough-top). 35º incline. Choice of 10`, 12`, 14`, or 16` length (call for other lengths). 18` side walls. Electric drive, 1.5HP, single-speed 50-60 FPM (call for other speeds). ON/OFF controls including E-STOP opposite side E-STOP. Shipped assembled for quick installation
