Scintrex - Model Gravilog -Slim-Hole Gravity Probe

SHARE

The Gravilog slim-hole probe is designed to be deployed down to a depth of 2,400 meters (7,874 feet; 4 conductors) inside smaller boreholes, (NQ drill rods, 57.2mm [2¼ in]) with deviations from vertical of up to 60 degrees.

Most popular related searches
pressure and temperature sensor
borehole logging system
gravity meter
borehole logging
drilling rod
temperature sensor
borehole
borehole drill
borehole drilling
borehole tool

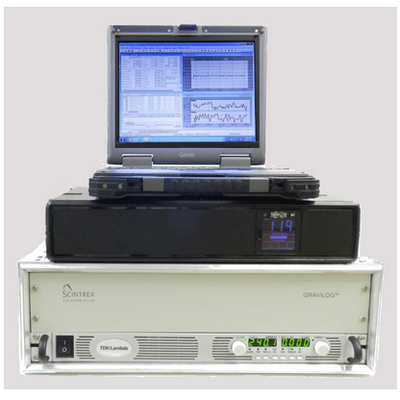

Scintrex integrates several other auxiliary systems with the Gravilog™ system for a complete borehole logging tool. The Gravilog™ probe includes a pressure and temperature sensor, a NaI natural gamma module and a sidewall clamp. The system comes with a rugged laptop pre-loaded with our Remote Gravity Software (RGS) for operating the Gravilog™ probe, a control electronics rack with power supply for powering the probe along with a digital back-up power UPS.

Logging gravity measurements down a borehole is now almost as easy as taking surface gravity measurements.
