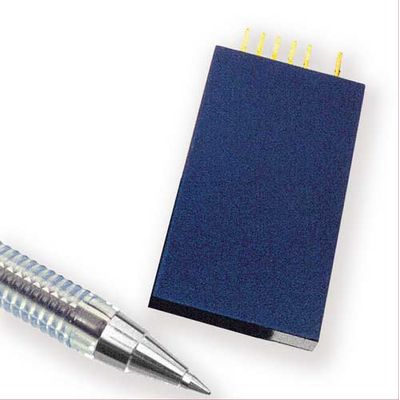

ZRF Ritec - Model SDP 311 and SDP 311/C -Slim Spectrometric Detection Probes for Gamma-ray Detection in Narrow Locations

ZRF Ritec SIA offers Slim Spectrometric Detection Probes, particularly designed for gamma-ray detection in confined spaces. This product line includes the SDP 311 and SDP 311/C models.The SDP 311 features a CdZnTe quasi-hemispherical detector, while the SDP 311/C incorporates a CdTe or CdZnTe planar counting grade detector. Enclosed in a thin rectangular case,these probes integrate a detector and charge sensitive preamplifier.With a minimal thickness of just 4 mm, the SDP 311 is tailored for applications where space is restrictive,making it suitable as a single element in multi-element detector arrays.The probes support high voltages up to 600 V with positive or negative polarization and offer energy resolutions at 662 keV ranging from 10 to 22 keV, dependent on detector volume. Specifications also include an operation temperature range of 0 to 40 °C a peak position shift of less than 0.02%per °C, and a signal rise time under 150 ns.Power demand is +12 V, 12 mA and -12 V, 8 mA.
