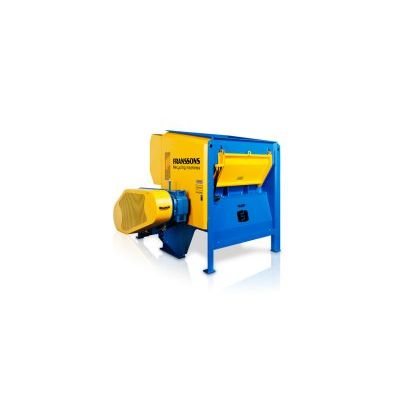

DESTROYER - Model FRX-200/300 -Slow Rotating Pre-Shredder
Destroyer is a slow rotating pre-shredder with electric drive and hydraulic pendulum feeder, with low energy consumption. The pendulum feeds the material against the rotor, equipped with fixed teeth that cut the material fixed against anvil steels. Final fraction is regulated by the integrated screen, 50-400 mm. The feeder, is operated by a last generation hydraulic system with variable displacementpump.
RECOMMENDED
All types of bulk material and bulky materials with contaminants.
RECOMMENDED
Plastics:Bottles, Foil, Lump, BigBags.
Waste: Household /industrial waste.
Paper: Paper, Pulper Waste, Cardboard.
Wood: Logs, Laminates , Wood waste.
Other: Textiles, Fishing nets.
RECOMMENDED
Fractions of: 50 – ∞ mm.
RECOMMENDED
- RDF&SRF (Solid recovered fuel)
- Landfills
- Saw mills
- Paper mills
- Large waste generators
- Robust and rebuildable tools.
- Quickfix™ Teeth, quick change of teeth with a single screw.
- Low electrical consumption.
- Low dust and noise level.
- Total opening for access to rotor.
- Hydraulic RejectHatch™ for emptying of machine in case of contaminants.
- Technical availability from 96% to 98%
Destroyer 2.000
- Entry 2.490 x 1.980
- Volume inlet 10m³
- Weight 21.500kg
- Hydraulic 7,5kW
- Main engine 180-264kW
- Rotor length 2.000mm
- Rotor diameter 800mm
- Teeth 40/u (100mm)
- Screen 50-200mm
- Teeth X-Cross
- Pusher Cleanpusher
- RejectHatch
Destroyer 3.000
- Entry 2.490 x 2.980
- Volume inlet 15m³
- Weight 26.500kg
- Hydraulic 7,5kW
- Main engine 220-360kW
- Rotor length 3.000mm
- Rotor diameter 800mm
- Teeth 60/u (100mm)
- Screen 50-200mm
- Teeth X-Cross
- Pusher Cleanpusher
- RejectHatch
Destroyer 3.800
- Entry 2.490 x 2.780
- Volume inlet 18m³
- Weight 31.500kg
- Hydraulic 11kW
- Main engine 260-400kW
- Rotor length 3.800mm
- Rotor diameter 800mm
- Teeth 76/u (100mm)
- Screen 50-200mm
- Teeth X-Cross
- Pusher Cleanpusher
- RejectHatch
