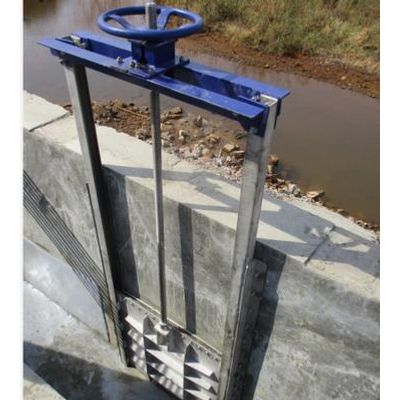

Potential - Sluice Gates / Penstock / Open Channel Gates
Sluice gate is also known as a penstock or slide gate. It is used to control the flow and to isolate fluids associated with water, wastewater, sewage treatment plants, power generation, irrigation schemes, and process plants. The selection of the Sluice gate in accordance with its duty, is important to satisfy the design criteria and to provide the most cost-effective solution. A modern Sluice gate is designed to cater to a wide variety of duties from low seating to high off-seating heads. The size ranges from 150 mm to 2000 mm. It can be a circular, rectangular, or square section. Operation of the gate can be simple direct operation by use of a handwheel or complex control system for electrical, pneumatic, or hydraulic actuation.
Sluice gate is suitable for waterworks applications such as flow control and isolation. We manufacture Sluice gates for corrosive and non-corrosive water treatment facilities, sewage treatment plants, water diversion projects, drainage, and diverse fluid control applications. Commonly, a sluice gate is designed for medium water head applications with very low leakage rate requirements.
- Size: 150 mm to 2000 mm
- Shape: Square/ Rectangular/ Circular
- MOC: CI/ SS/ CS/ Al
- Sealing: 3 Sides or 4 Sides
- Actuation: Manual/ Motorized/ Hydraulic/ Pneumatic
- Design Standards: IS 3042. 1965/ IS 13349.1992/ AWWA C513
- Customized design
- Manual or automatic operation
- Flush / conventional bottom closure
- Easy to install
- Low maintenance
- Safe operation in hazardous areas
- Easy availability of spares
- Oil & Gas
- Wastewater & Water
- Power
- Steel
- Municipal
- Mining
- Dairy
- Sugar
- Pharma
- Food & beverages
- Chemicals
- Miscellaneous (Wood, textiles, glass, paper etc)
