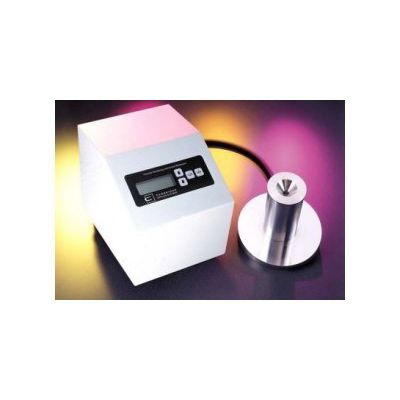

PAC Cambridge Viscosity - Model VISCOlab 4000 -Small Sample Laboratory Viscometer
The VISCOlab 4000 measures fluids in all viscosity ranges at ambient temperatures, assuring consistent and repeatable viscosity measurements. An optional jacket is available for temperature control with a re- circulating bath, enabling accurate viscosity measurements from -40°C to +110°C. In addition to the sensor, sophisticated electronics provides users with substantial flexibility, including specifying temperature and viscosity display units, the data averaging interval, and control characteristics. Optional real-time density measurement enables real-time kinematic viscosity readings in addition to the system’s standard absolute viscosity measurements. The VISCOlab 4000 incorporates a serial interface to make it easy to output data to a PC or an optional thermal printer.
The VISCOlab 4000 contains a piston-style electromagnetic sensor and RTD that provides continuous viscosity, temperature and temperature compensated viscosity (TCV) readings.
Measurements can be made in any of twelve 20:1 viscosity ranges. Viscosity can be displayed in either centipoise or centistokes, temperature can be displayed in°C or°F.
The optional liquid circulating jacket permits operation from -40°C to 110°C. Multiple operating ranges and product set-ups can be precalibrated.
Data can be output to a PC, via the RS-232 serial port for tracking, storage or graphical display. The electronics allow the user to define temperature and viscosity display units, data averaging interval, density and much more. The electronics also provides digital readings, as well as, statistics on sample stability that allow greater repeatibility between tests and operators.
- Requires less than 2 ml of fluid
- Simple to use, easy to clean
- Minimum bench space required
- Digital displays of centipoise or centistokes
- Digital temperature display in °F or °C
- RS232 Interface
- Stores up to 40 product specific test set-ups
- Optional liquid recirculating jacket and cap
- Standard deviation of sample readings for enhanced repeatibility
