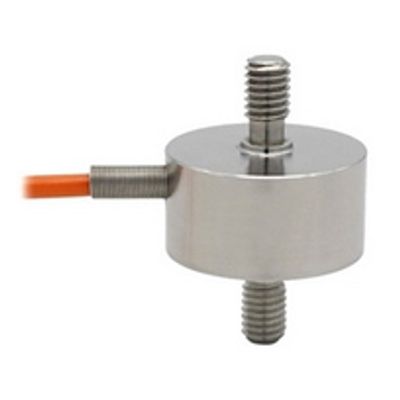

ATO - Model S-LCC-DYMH-103 -Small Tension and Compression Load Cells
FromLoad Cells Inc
This time we will introduce a small load cell. It is a tension and compression load cell for force measurement, such as automobile braking force detection.
Most popular related searches
- Weight. 0.1kg
- Capacity. 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg, 50kg, 100kg, 150kg, 200kg
- Accuracy. 0.03%F.S (linearity + hysteresis + repeatability)
- Sensitivity. 1.0~1.5mV/V
- Creep. ±0.05%F.S/30min
- Zero output. ±1%F.S
- Temperature effect on zero. ±0.05%F.S/10℃
- Temperature effect on output. ±0.05%F.S/10℃
- Operating temperature. -30℃~+70℃
- Input impedance. 400±10Ω
- Output impedance. 350±10Ω
- Insulation resistance. ≥5000MΩ
- Safety overload. 150%F.S
- Overload limit. 200%F.S
- Bridge voltage. DC 10-15V, suggest DC 10V
- Material. Stainless steel
- Protection class. IP67
- Cable length. 2m
- Wiring. EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White
