Small Vertical Planar Scanner Systems

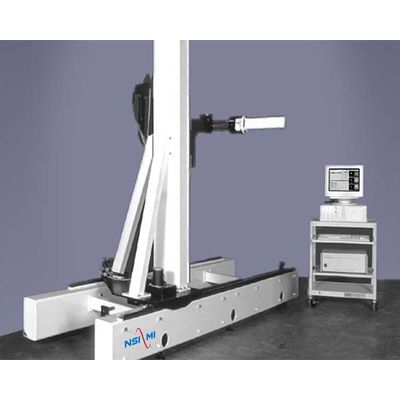

The small vertical planar near-field measurement system is ideal for measuring medium and high gain antennas (>15 dBi) with medium-sized apertures making it suitable for testing medium arrays or reflector antennas. They are based on an inverted "T" design and is constructed of steel. For high stability, a welded dual-pontoon base is used. This simple design is easy to align, accurate, and can be dismantled for transport or storage within one day. The high capacity probe carriage can accommodate probes as large as a WR-650.
- High accuracy planarity
- 1.8 m x 1.8 m (6` x 6`) to 4.5 m x 4.5 m (15` x 15`) scan area
- Precision rack and pinion drive
- L-band to mmWave measurements
- Far-field, near-field, and holographic patterns
- Cylindrical and spherical options available
Construction:: Vertical "T" and Inverted "T" Frames (steel)
Drive System: Precision Stepper Motor; Rack and Pinion
Scan Area: 1.8 x 1.8 m – 4.5 x 4.5 m (6` x 6` – 15` x 15`)
Planarity: 0.10 to 0.125 mm (
*Corrected Planarity: 0.05 mm (
Resolution (X,Y): 0.025 mm (0.001 in.) RMS
Position Repeatability: 0.05 mm (0.002 in.) RMS
Scan Speed (X-Y): X: 0.25 – 0.38 m/s (10 – 15 in/s )
Y: 0.385 – 0.76 m/s (15 – 30 in/s)
Probe Carriage Capacity: 9 – 56.8 kg (20 – 125 lb)
System Controller: NSI-MI controller with parallel I/O, and serial interface.
Measurement Workstation: Measurement workstation computer with large LCD monitor.
Stepper/Servo Motor Power Amplifier: EIA 19" rack mount, (7" high x 14" deep)
Motor Cables: Quick-connect; 12 m (40`)
Scanner Absorber: X-Y Absorber Kit (8" pyramidal cone)
Probe: Optional
Probe Mount: Angle Bracket - allows mounting probe in "V" or "H" orientation
RF Cables: 20 GHz RF Cables
Supported RF Devices: NSI-MI Receiver Subsystem or selection of Keysight, Rohde & Schwarz and Anritsu VNA`s
Power: 100-240 VAC switchable; 50/60 Hz, 500 watts
DIMENSIONS
Width:: 3.1 – 6.0 m (123 – 236 in.)
Depth: 1.7 – 2.4 m (65 – 96 in.)
Height: 3.3 – 5.9 m (131 – 234 in.)
System Weight: 953 – 2,722 kg (2,100 – 6,000 lb)
