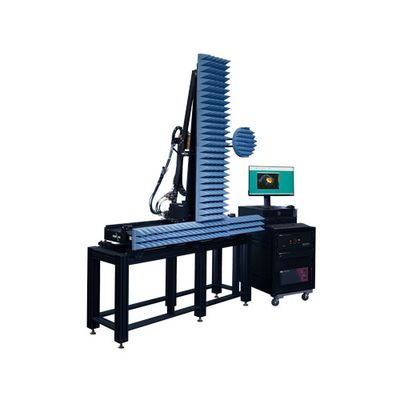

The PNF-XYV-0.9x0.9 is a pre-configured four axes planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 0.75 m (30 in.) from 2.6 GHz to mmWave. The system is constructed of high strength aluminum and can support probe payloads of up to 6 kg (13 lb). This simple design is easy to assemble and align, accurate, and can be quickly dismantled for relocation or storage.

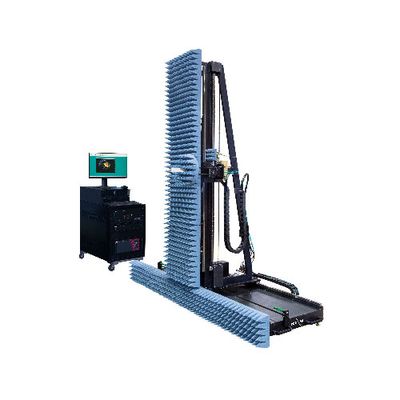

The PNF-XYV-1.5x1.5 is a pre-configured four axes planar near-field measurement system ideal for measuring medium and high gain antennas (> 15 dBi) with apertures up to 1.4 m (55 in.) from 1.7 GHz to mmWave. The system is constructed of high strength aluminum and can support probe payloads of up to 7 kg (15 lb). This simple design is easy to assemble and align, accurate, and can be quickly dismantled for relocation or storage.

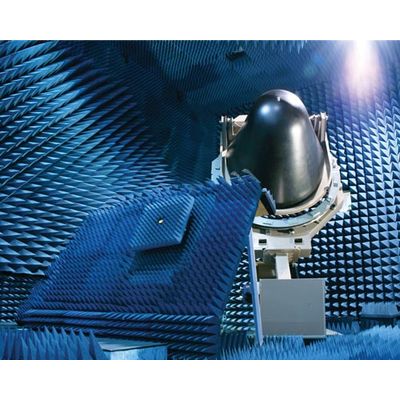

NSI-MI Technologies’ Commercial Radome Systems are intended for after-repair testing of commercial aircraft radomes. The systems are capable of making measurements described in the widely referenced document DO-213A. After repair, radome testing includes transmission efficiency Sidelobe Level (SLL) measurements. Test systems are available in both C band (5.3 GHz to 5.74 GHz) and X band (9.3 GHz to 9.5 GHz) frequency ranges.
