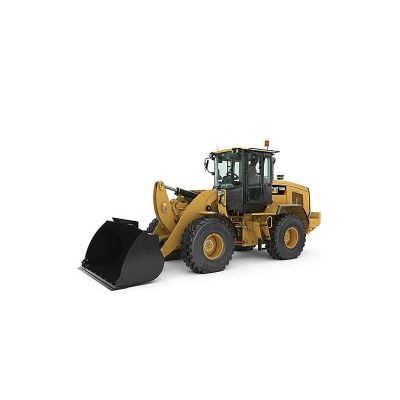

Caterpillar - Model 930M -Small Wheel Loader

Engine

Maximum Gross Power 164.0 hp
Bore 4.0 in
Stroke 5.0 in
Displacement 427.0 in3
Rated Net Power 157.0 hp
Engine Model Cat® C7.1 ACERT™
Maximum Rated Gross Power: ISO 14396 164.0 hp
Maximum Rated Gross Power: ISO 14396 (DIN) 166.0 hp
Maximum Rated Gross Power – Maximum Engine Speed (Performance Power Mode: Range 1-4) 1800.0 rpm
Maximum Rated Gross Power – ISO 14396 (Performance Power Mode: Range 1-4) 164.0 hp
Maximum Rated Gross Power – ISO 14396 (DIN) (Performance Power Mode: Range 1-4) 166.0 hp
Rated Net Power at 1,800 rpm – SAE J1349 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 157.0 hp
Rated Net Power at 1,800 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Performance Power Mode: Range 1-4) 160.0 hp
Rated Net Power at 1,800 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Performance Power Mode: Range 1-4) 162.0 hp
Maximum Gross Torque – ISO 14396 (Performance Power Mode: Range 1-4) 592.0 lbf-ft
Maximum Net Torque – SAE J1349 (Performance Power Mode: Range 1-4) 566.0 lbf-ft
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Performance Power Mode: Range 1-4) 572.0 lbf-ft
Maximum Rated Gross Power – Maximum Engine Speed (Standard Power Mode: Range 1-3*) 1600.0 rpm
Maximum Rated Gross Power – ISO 14396 (Standard Power Mode: Range 1-3*) 160.0 hp
Maximum Rated Gross Power – ISO 14396 (DIN) (Standard Power Mode: Range 1-3*) 162.0 hp
Rated Net Power at 1,600 rpm – SAE J1349 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 154.0 hp
Rated Net Power at 1,600 rpm – ISO 9249 (1977)/EEC 80/1269 at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 156.0 hp
Rated Net Power at 1,600 rpm – ISO 9249 (DIN) at Minimum Fan Speed (Standard Power Mode: Range 1-3*) 158.0 hp
Maximum Gross Torque – ISO 14396 (Standard Power Mode: Range 1-3*) 592.0 lbf-ft
Maximum Net Torque – SAE J1349 (Standard Power Mode: Range 1-3*) 566.0 lbf-ft
Maximum Net Torque – ISO 9249 (1977)/EEC 80/1269 (Standard Power Mode: Range 1-3*) 572.0 lbf-ft
Emissions Engine meets U.S. EPA Tier 4 Final/EU Stage IV emission standards.
Note * Range 4 power and torque is equal to Performance Mode with Caterpillar Power by Range technology.
Note Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when the engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.
Note Spark arrestor performance as standard – Meets performance requirements of EN 1834-1.2000 (section 6.4.2 Visual Test).

Buckets
Bucket Capacities 2.1-5.0 m3 (2.7-6.5 yd3)

Weights
Operating Weight 30879.0 lb

Steering
Steering Cylinder: Double Acting – Bore Diameter 2.8 in
Steering Cylinder: Double Acting – Rod Diameter 1.6 in
Steering Cylinder: Double Acting – Stroke 17.2 in
Maximum Flow – Steering Pump 34.0 gal/min
Maximum Working Pressure – Steering Pump 3500.0 psi
Maximum Steering Torque – 0° (Straight Machine) 37155.0 lbf-ft
Maximum Steering Torque – 40° (Full Turn) 27747.0 lbf-ft
Steering Cycle Times (Full Left to Full Right) – Minimum RPM: Pump Flow Limited 2.8 seconds
Steering Cycle Times (Full Left to Full Right) – Maximum RPM: 90 rpm Steering Wheel Speed 2.4 seconds
Note Steering system uses a dedicated load sensing variable displacement pump with dual double acting cylinders.
Note Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Loader Hydraulic System
Maximum Flow – Implement Pump 50.0 gal/min
Maximum Flow – Implement Pump: 3rd Function Maximum Flow* 50.0 gal/min
Maximum Flow – Implement Pump: 4th Function Maximum Flow* 42.0 gal/min
Maximum Working Pressure – Implement Pump 3626.0 psi
Relief Pressure – Tilt Cylinder 4061.0 psi
Relief Pressure – Tilt Cylinder: 3rd and 4th Function Maximum Working Pressure 3626.0 psi
Relief Pressure – Tilt Cylinder: 3rd and 4th Function Relief Pressure 4061.0 psi
Lift Cylinder: Double Acting – Bore Diameter 4.7 in
Lift Cylinder: Double Acting – Rod Diameter 2.6 in
Lift Cylinder: Double Acting – Stroke 28.7 in
Tilt Cylinder: Double Acting – Bore Diameter 5.9 in
Tilt Cylinder: Double Acting – Rod Diameter 3.5 in
Tilt Cylinder: Double Acting – Stroke 21.9 in
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Raise (Ground Level to Maximum Lift) 5.1/5.7 seconds
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Dump (at Maximum Lift Height) 1.5/1.7 seconds
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Float Down (Maximum Lift to Ground Level) 2.7/2.7 seconds
Cycle Times: Performance (HP+) at 1,800 rpm/Standard Power Mode at 1,600 rpm – Total Cycle Time 9.3/10.1 seconds
Note * 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.
Note Implement system uses a dedicated load sensing variable displacement pump with dual double acting lift cylinders and a single double acting tilt cylinder.
Note Flow values listed are for a machine running in Performance Power Mode (1,800 rpm).

Service Refill Capacities
Fuel Tank 51.5 gal
Cooling System 7.9 gal
Engine Crankcase 5.3 gal
Transmission (Gear Box) 2.2 gal
Front Axles 6.9 gal
Rear Axles 6.6 gal
Hydraulic System (Including Tank) 43.6 gal
Hydraulic Tank 23.8 gal
Diesel Exhaust Fluid (DEF) Tank 5.0 gal

Transmission
Forward and Reverse: Range 1* 1-13 km/h (0.6-8 mph)
Forward and Reverse: Range 2 8.0 mph
Forward and Reverse: Range 3 17.0 mph
Forward and Reverse: Range 4 25.0 mph
Note * Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Cab
ROPS ISO 3471: 2008
FOPS ISO 3449: 2005 LEVEL II
Note Declared sound levels per ISO 6396:2008* while in Performance Power Mode: – Standard cab: 68 ±3 dB(A) and Deluxe cab
Note * Measurements were conducted with cab doors and windows closed and at 70% of maximum engine cooling fan speed. Sound level may vary at different engine cooling fan speeds.

Operating Specifications
Full Turn Tip Load 18670.0 lb

Power Train
Front Axle Fixed
Front Axle: Traction Aid (standard) Locking differential
Rear Axle Oscillating
Rear Axle: Oscillation Angle by Tire Size – 20.5 R25, 550/65, 600/65, 650/65 ± 10.5 degrees
Rear Axle: Oscillation Angle by Tire Size – Solid Tires, 750/65, 620/65, Skidder ± 7 degrees
Rear Axle: Traction Aid (optional) Limited slip differential
Brakes: Service Inboard wet disc
Brakes: Park Spring applied hydraulically released
Note Power train is governed by the Caterpillar exclusive Intelligent Power Management system to deliver peak performance and efficiency.
Note Differential front locking axle can be engaged on the go at full torque to 10 km/h (6.2 mph) on the 930M.

POWER TRAIN

• Axle seal guards
• Auto idle shut down feature
• Cat C7.1 ACERT engine: – Power Modes (Standard and Performance) – Power by Range (High Power in Range 4) – Turbocharged and aftercooled – Diesel particulate filter (Fit for Life)
• Coolant protection to –34° C (–29° F)
• Differential lock in front axle
• Dry type air cleaner
• Enclosed wet disc full hydraulic brakes
• Fuel priming pump, automatic
• Fuel water separator
• Hydraulically driven demand cooling fan
• Intelligent hydrostatic transmission: – Power train modes – Directional Shift Aggressiveness – Rimpull control, adjust wheel torque – Creeper control, adjust ground speed
• Lubed for life driveshafts
• Parking brake, electric
• Wide spaced 6 fins per inch cooling package
• S·O·SSM sampling ports
• Throttle lock and maximum speed limiter

HYDRAULICS

• Automatic lift, lower and tilt kickouts
• Bucket and Fork Modes, adjustable in-cab
• Cylinder damping at kickout and end stops
• Fine Mode control in Fork Mode
• Hydraulic Response setting
• Load sensing hydraulics and steering
• Seat-mounted hydraulic joystick controls

ELECTRICAL

• Alternator, 115-amp, heavy duty
• 12V power supply in cab (2)
• Batteries, 1,000 CCA (2) 24 volt system
• Back-up alarm
• Emergency shutdown switch
• Heavy duty gear reduction starter
• Product Link PRO with subscription
• Remote jump start post
• Resettable critical function breakers

OPERATOR ENVIRONMENT

• 75 mm (3 in) retractable seat belt, with audible alarm and indicator
• Automatic temperature control
• Cab, enclosed and pressurized
• Cup holders
• External heated mirrors with lower parabolic
• Ground level cab door release
• Gauges: – Digital hour, odometer, tachometer, ground speed and direction indicator – Engine coolant temperature gauge – Fuel and Diesel Exhaust Fluid level – Hydraulic oil temperature gauge
• Hydraulic control lockout
• Interior cab lighting, door and dome
• Interior rearview mirrors (2)
• Lunch box storage
• Operator warning system indicators
• Radio ready speakers
• Rear window defrost, electric
• Seat-mounted controls, adjustable
• Sliding glass on the side windows
• Column mounted multi function control – lights, wipers, turn signal
• Suspension seat, fabric
• Tilt and telescopic steering wheel
• Wet arm wiper/washer, front and rear

OTHER STANDARD EQUIPMENT

• Large-access enclosure doors
• Parallel lift loader linkage
• Recovery hitch with pin
• Remote mounted lubrication points
• Lockable compartments and enclosures
