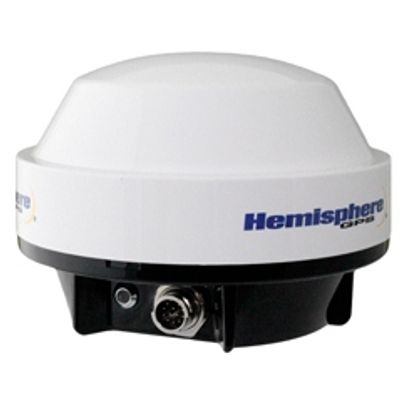

Hemisphere - Model A101 -Smart Antenna

SHARE

Focus on the job at hand with fast start-up and reacquisition times, 60 cm accuracy, and an easy-to see status indicator for power, GPS, and DGPS.The durable enclosure houses both antenna and receiver. 10 Hz update rate (20 Hz optional). Pitch/Roll accuracy 1° using tilt sensor. 60cm horizontal accuracy with SBAS (WAAS). 20mm horizontal accuracy with RTK.

Most popular related searches
beacon
  • provides 2D heading, heave/pitch/roll and positioning data
  • single dual antenna simplies installation
  • Heading accuracy of < 0.75 degrees
  • Pitch/Roll Accuracy: < 1.5˚ rms
  • Heave Accuracy: 30 cm
  • Sub-meter differential positioning accuracy
  • Heading updates up to 10 hertz
  • Position updates up to 5 hertz
  • Integrated DGPS sources including WAAS, EGNOS and beacon
