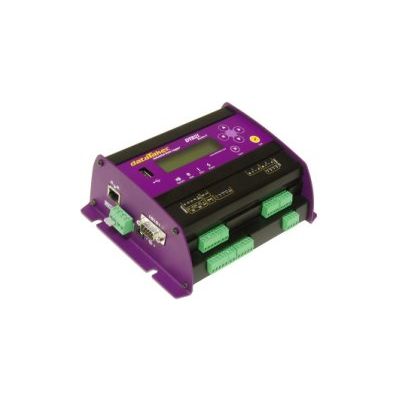

dataTaker - Model DT82I -Smart Data Logger

• Analog input channels set up as binary logic level inputs.
• Digital inputs recording ON/OFF states of contacts, or counting pulses over a desired period.
• Alarm channels and digital outputs to raise alarms (email / SMS / physical digital outputs) or control external processes.
• Readings may be returned directly or via internal calculations based on a single channel or multiple channels.
• Internal memory holds ∼10 million readings.
• Connection to the host computer via Ethernet, USB, and serial Host Port.
• Separate USB port for USB flash drives to be used for extra storage, or automatic unloading of data from the logger.
• Built-in battery or auxiliary battery option.
• Most data logging configurations are easily set up using the graphical web-based dEX interface and a standard web browser.
• For more complex configurations, a script can be developed using the logger`s own scripting language.

The dataTaker DT82I smart data logger provides an extensive array of features that allow it to be used across a wide variety of applications. The DT82I is a robust, stand alone, low power data logger featuring USB memory stick support, 18 bit resolution, extensive communications capabilities and built-in display.

The dataTaker DT82I’s Dual Channel concept allows up to 4 isolated or 6 common referenced analog inputs to be used in many combinations. With support for Modbus for SCADA systems, FTP and Web interface, 12V regulated output to power sensors, the DT82I is a totally self contained solution.

Connect an array of sensors through the versatile analog and digital channels, high-speed counter inputs and programmable serial sensor channels. Temperature, voltage, current, 4-20mA loops, resistance, bridges, strain gauges, frequency, digital, serial and calculated measurements can all be scaled, logged and returned in engineering units or within statistical reporting. Set up sampling, logging, alarm and control tasks to suit your own requirements while interfaces for smart sensors, GPS and other intelligent devices expand the DT82I flexibility.

With the standard unit able to store up to 10 million data points (expandable) you can log as much or as little as you need. Overwrite or stop logging once allocated memory is full, archive data on alarm event, copy to USB memory or transfer via FTP/ Email, the choice is yours.

Communications features include RS232 and Ethernet, connect to the DT82I locally, remotely through a modem or over the Internet. The web interface allows users to configure the DT82I, access logged data and see current measurements as mimics or in a list using a web browser.

FTP/ Email provides data to your offi ce over the internet or wireless network, without the need for polling or specific host software.

• Tank Level
• Toxic gas level
• Temperature monitoring
• Power usage and smart grid
• Wind power generation
• Process monitoring
• Machine down time
• Pressure monitoring

• Battery Type : 6 V Lead Acid
• Calibration : Not Calibrated
• Channels : 2 to 6 Analog, 8 Digital, high speed counter inputs and phase encoder inputs
• Data Memory : 128 MB
• Dimensions (L x W x H) : 180 x 137 x 65 mm
• Humidity Range : Maximum: 85%, non-condensing
• IP Rating : IP54
• Includes : Logger and accessories
• Interface : Includes Ethernet, MODBUS, RS232, RS422, RS485
• Model : DT82I
• Operating Temperature (Metric) : -45°C to +70°C (reduced battery life and LCD operation outside range -15°C to +50°C)
• Sensor Types : Numerous, including thermocouples, thermistors, temperature sensors, strain gauges and bridge sensors
• Weight (Metric) : 1.5 kg
• Alarm Types : E-mail, SMS, Physical/Digital Output
• Display Type : Backlit LCD, 2 line by 16 characters
• Type : Low Cost Environmental Datalogger
• Unit Size : Each
