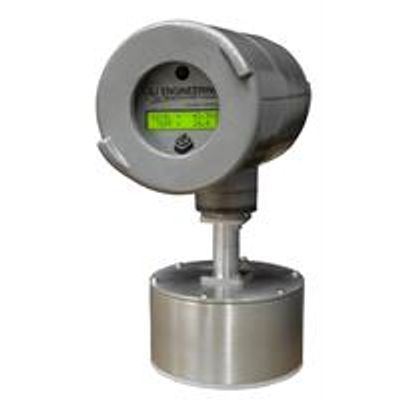

L&J Engineering - Model MCG 1600SFI -Smart Flash Infrared Radar Gauge Conar Antenna
Dual Microprocessors: At the heart of the MCG 1600SFI is a high integration core microprocessor which can be customized to specific applications. A separate DSP microprocessor provides high speed measurement and algorithm processing for high accuracy, obstruction avoidance, self-calibration, and echo cancellation. All programmed and processed information can be displayed on the gauge’s 32-character LCD as well as an optional ground level display.
The conar antenna incorporates advanced waveguide technology which allows for a smaller, compact and lightweight design. This allows for easy cleanup and maintenance. L&J offers a version of our conar antenna specifically designed for mounting to an existing sampling gauge well. Once installed the MCG 1600SFI can easily be setup via the local display or an optional MCG 1350 Ground Level Display via the MCG 2150 Handheld Infrared Calibrator.
Paired with L&J`s MCG 2150 Remote Calibrator`s patented "5-Step Setup Wizard" will have your radar gauge up and running in under 5 minutes without the use of any external devices or laptops.
- +/- 0.5 mm Accuracy
- Frequency Modulated Continuous Waveform Technology
- Designed for Stilling Well Applications
- Gauge Sampling Hatch Version Available
- Wireless Mesh Level Gauging Compatible
- Measuring Principle:
- FMCW Radar
- Range:
- 0-75 feet (23m) standard.
- Up to 180 feet (55m) optional
- Accuracy:
- +/- .5 mm
- Resolution:
- .1 mm
- Radar Power Consumption:
- Less than 1mw (0dBm)
- Electronics Temperature:
- -40º F to 150º F(-40ºC to +65º C)
- Product Temperature:
- -148º F to 482º F (-100º C to 250º C)
- Local Display:
- 2 line x16 Character LCD
- Lightning Protection:
- Comprehensive Surge
- Protection Standard
- Max. Pressure:
- 150PSIG (or 300PSIG optional)
- Construction:
- Aluminum
- Stainless Steel
- Mounting:
- 2” NPT Standard
- Flanged Connection Available (See Ordering Guide)
- Weight:
- 8 lbs. (Aluminum)
