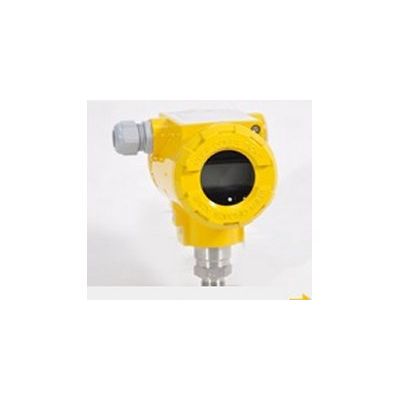

Aplisens - Model APC-2000 ALW -Smart Pressure Transmitter
FromAplisens S.A.
Measuring range: min. 0 .5 mbar; max. 0.1000 bar. Output signal: 4...20 mA, 0...20 mA or 0...5 mA + protocol HART; Profibus PA. Accuracy: 0,075% (0,04%). Process connection: M20 x 1,5; G 1/2`; 1/2NPT; 1/2NPT F; G1/4”; G 1/2` (flush diaphragm); G 1` (flush diaphragm); M30 x 2 (flush diaphragm); M20 x 1,5 (flush diaphragm). Diaphragm seals.
Most popular related searches
pressure transmitter
smart pressure transmitter
intrinsic safety
diaphragm sealing
ATEX certification
pressure monitoring
- 4...20 mA, 0...20 mA or 0...5 mA output signal + HART protocol
- Digital PROFIBUS PA signal
- Display with backlight
- Programmable range, zero shift, characteristic and damping ratio with
- local panel keys
- Intrinsic safety certificate (ATEX, lECEx)
- Explosion proof certificate (ATEX, lECEx)
- SIL 2 certificate
- Marine certificate - DNV, BV
- PED Conformity (97/23/EC)
- Accuracy 0,075% (0,05% on request)
- Gold plated diaphragm (Au)
- MID (Measuring Instruments Directive) - certificate ace. to 2004/22/WE directive
- and OIML R140:2007 recommendations.
