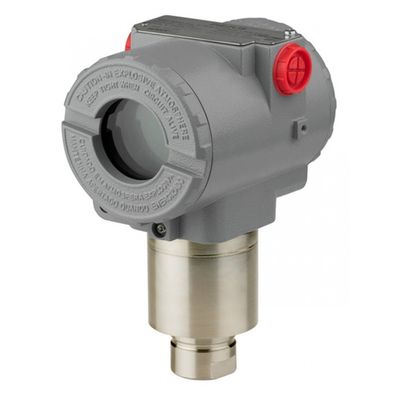

PIEZUS - Model AMZ 5450 -Smart pressure transmitter with HART communication
FromPIEZUS LLC
AMZ 5450 industry standard pressure transmitters are based on a proven capacitive pressure sensor technology(*) and feature high performance, resistance to overpressure and stability in dynamic pressure and temperature environments. Certain parameters, including ZERO and SPAN are configurable by use of a special magnetic tool in the hazardous areas. Local liquid crystal display features backlight and is mountable at 0, 90, 180 and 270 degrees providing flexibility in transmitter installation angle.
*ranges over 70 bar feature piezoresistive sensor technologyMost popular related searches
pressure transmitter
smart pressure transmitter
sensor system
hazardous area
gas pressure monitoring
industrial pressure transmitter
pressure sensor
capacitive sensor
pressure monitoring
hazardous liquid
Pressure ranges: 15 mbar up to 400 bar
Overpressure: up to 600 bar
Accuracy: up to ±0.075%
Output: 4...20 mA
Communication: HART
Approvals: 0Ex ia IIC T4 Ga X / 1Ex d IIС Т5, Т6 Gb X
Sensor: capacitive stainless steel / silicon piezoresistive
Pressure port: 1/2” – 14 NPTF, adapters for other threads
Turn down: up to 100:1
Display: LCD with backlight
Liquid, steam and gas pressure measurement
Level monitoring in open tanks
