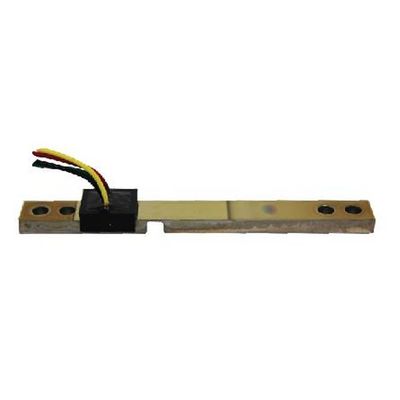

SMD - Model S100 -Load Cell
The S100 Load Cell has a proprietary sputtered thin-film strain gauge design offering long-term stability and a full Wheatstone bridge. This compact sensor, with a simple beam mounting configuration, can be used to electronically measure force or displacement in a wide variety of applications.
Most popular related searches
- Compact, low profile design
- High, long-term zero point stability
- Low power consumption
- Low hysteresis
- Ideally suited for OEM
- Medical instrumentation
- Force, displacement
- Acceleration measurement
- Battery powered equipment
- Robotics
- Food dispensing equipment
- Capacity : 0.5, 1, 2, 5, 10, 20, 50, 125 N
- Hysteresis : 0.03% R.O.
- Non-Repeatability : 0.05% R.O.
- Natural Frequency : 80, 130, 180, 350, 500, 590, 830 Hz
