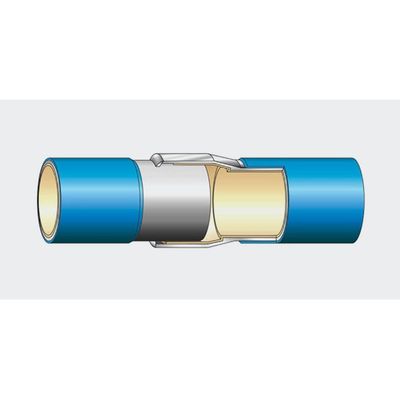

Socket Weld Joint

Combining the socket and welded pipe provides all of the benefits of the former, with the leak and corrosion benefits of the latter.

Most popular related searches

Diameters: 80mm – 3000mm
Steel Grades: ST37, L235, L275, ST52, API, ASTM A106, X42, X52, X60
Linings: Cement Mortar Lining to DWI 25 (1) (a) & DWI 31 (4) (a), and Epoxy to DWI 31 (4) (a).
Protection: Blue 3 Layer PE; 3 Layer PP (both 1.8-4mm thick depending on OD); FBE (500 µm thick). Sewage pipes would be black in colour.
Uses: Potable Water & Sewage Sludge (with Acronal cement mortar).
Internal Repair: No repair needed on c/m lining. Repair needed on epoxy lining with our repair kits.
Pressure Rating: 1-150 bar depending on steel grade, OD and wall thickness.
Realistic Usability: Any potable water or sewage sludge pipeline, especially where aggressive or rocky ground conditions will result in, or has resulted in, corroded, cracked and leaking pipelines after only a few years.
Joint Type: External Socket Weld joint.
Fittings: Socket Weld fittings made to suit.
Aim: No corrosion, no leaks, no minimum longevity of life.
Soil Types: Ideal for all soil types because of complete corrosion protection.
Extras: Cement mortar rock shield for river crossings & rocky ground.
