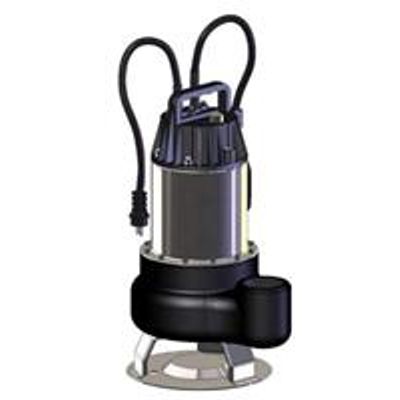

Soggia - Model SVG -Sewage Pumps for Dirty Water Vortex or Twin-Channel
FromSoggia Srl
Submersible water pumps for waste water with double chamber and pump body in Cast iron. Available in two versions, with Vortex or twin-channel impellers can get maximum flow of 700 l/min with maximum head of 16 meters. Those pumps are suitable to empy decantation and sewage pits, as they can move dirty water with solid matters up to 50 mm, in domestically and industrial application. All SVG pumps arc supplied with float switch in the single-phase version.
Most popular related searches
submersible water pump
sewage pump
float switch
float switch cable
sewage
submersible pump
water pump
domestic sewage
sewage collection
impeller pump
- Capacity till 700 l/min (42 m3/h )
- Head meters till 16 meters
- Rotation speed 2800 r.p.m.
- Maximum immersion: 5 meters
- By-pass section: SVG080 from 30mm / SVG100-150-200 da frommm
- Temperature: 25°C partially immersed - 50°C totally immersed
- Emptying was settling, blacks wells and sewage collection
- Pumpggio waste water with suspended solids
- Handling domestic sewage and industrial
- Emptying sewage wate
- Outer casing, Impeller, Pump body and base in steel INOX AISI 304
- Steel shaft INOX AISI 316
- Mech. Seal Pump side in graphite-ceramic
- Cover and handle in Technopolymer
- Automatic Single-phase versions with float switch
- Cable: 10 meters in H07RN-F and float switch (singlephase)
- 2 pole electric induction in oil bath for continuous operations
- Sealing ring Motor side
- Protection class IP 68
- Class of insulation F
- Single-phase motor at 220-277 V - 50 Hz; Built in motor protector to prevent damage in the event of overheating and capacitor
- Three-phase motor at 380-480 V - 50Hz; protection must be provided by user.
