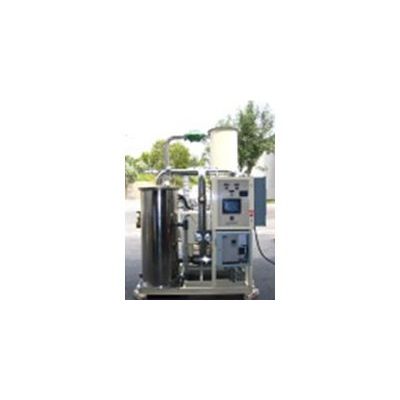

Soil-Therm - Model Compact-ELECTRIC - Electric Catalytic Oxidizer Systems
From Electric Oxidizer Systems
The Compact-ELECTRIC is built to process higher flow rates of VOC's from a range of 0 to 25% LEL. The standard system includes 40 kW heater, 60% efficiency shell and tube heat exchanger, 6 ft x 6 ft skid, positive displacement or DPE blower with TEFC motor, Nema 4 UL508A Approved control panel, touchscreen operator panel, advanced PLC controls and more.
Standard Equipment
- Skid Size: 6 ft by 6 ft Steel Skid with lifting lugs and fork slots
- Blower: Roots 59 with 15-20 hp TEFC motor
- Heater: 40 kW, 230VAC, 3-phase
- Piping: 4' Stainless steel
- Catalyst Module: Greater than 98% destruction
- Heat Exchanger: All stainless shell & tube, 55-60% efficiency
- Water Knockout: 60 gallon capacity, stainless steel, dual level switch
- Knockout pump: Goulds NPE, stainless steel, .5 hp motor
- Well Vapor Valve: 4' Brass Gate Valve
- Dilution Air Valve: 4' Brass Gate Valve
- Main Control Panel: 30'x 24'x 12', UL Listed, Nema 4
- Operator Interface: 8' Color Touchscreen with 4GB Data Card
Options
- Variable Frequency Drive for Main Blower and/or Dilution Blower
- Main Blower Upgrade - - Dual Phase or Rotary Claw
- Dilution Air Blower Upgrade to 150 cfm, 2 hp
- ReMAC - (Remote Monitoring and Control)
- Cellular Modem Unit with Antenna
- Cellular Service (monthly fee)
- Monitoring Instrumentation Upgrades:
- LEL (pre-burner or exhaust stack)
- Oxygen (%)
- Amperage (A)
- Discharge Temperatures ( F)
- Stack Emissions Monitor (O2, VOC, CO2, etc )
- Many others...
- Trailer, dual axle, 7,000 lb gvwr, 6'x12' open deck
- Trailer, enclosed, 10,000 lb gvwr, 8'x14' enclosed deck
- Enclosure, Cargo Container style
- Enclosure, Noise Attenuated Cargo Container style
