Cla-Val - Model 134-60 -Solenoid Deluge Valve with Manual Bypass
FromCla-Val

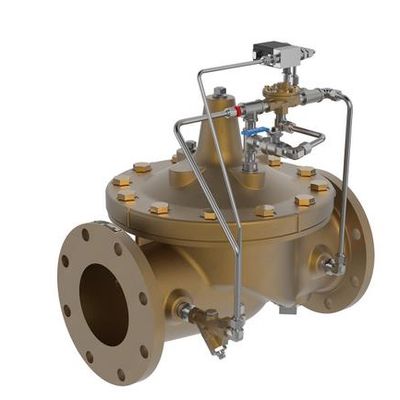

The Cla-Val Model 134-60 Seawater Service Solenoid Control Valve is an on-off control valve which either opens or closes upon receiving an electrical signal to the solenoid pilot control. This valve consists of a 100GS/2100GS Hytrol Main Valve, a three-way solenoid valve and an auxiliary pilot valve.
Most popular related searches
deluge valve
solenoid valve
solenoid controlled valve
control valve
fire protection
three-way valve
fire protection valve
pilot solenoid valve
deluge fire protection
fire protection system
Please note that the UL Listing applies to the 100GS/2100GS Hytrol Main Valve only.
This pilot control system alternately applies pressure to/or relieves pressure from the diaphragm chamber of the main valve. It is furnished either normally open (de-energize solenoid to open) or normally closed (energized solenoid to open).
