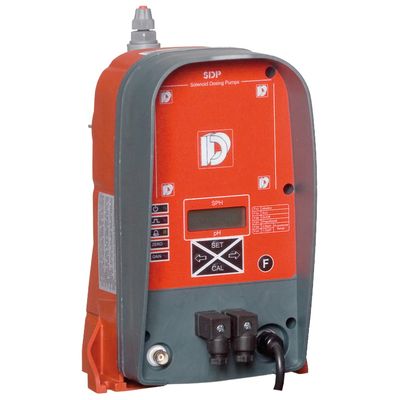

Doseuro - Model Series SDP Type S -Solenoid Diaphragm Pump
FromFPZ S.p.A.
The SDP family provides an alternative solution in lower rates application field where end users look forward reliable results and simple operation. Using a built-in microprocessor, with its own flexibility, makes the SDP series extremely complete and suitable for a wide range of applications, thanks to several functions included in the same pump, even with few models.
Most popular related searches
chemical dosing pump
safety relief valve
back pressure valve
dosing pump
mounted dosing pump
solenoid diaphragm pump
relief valve
chemical dosing
pressure relief valve
pulsation dampener
Common features for every model:
- Foot mounted dosing pump
- Corrosion-proof reinforced polypropylene housing
- Solid PTFE diaphragm
- Water-resistant IP65 protection
- Wide choice of wetted materials: PP; PVC; S.S.316; PTFE; PVDF
- Standard power supply: 230V 50/60 Hz, On request: 24V d.c., 12V d.c., 24V a.c.,110V 50/60 Hz
All chemical dosing pumps are complete of accessories to improve the operation and accuracy of the chemical dosing pump:
- Injection valve
- 1,5 suction pipe, 1,5 delivery pipe
- Strainer
- Model: S
- Qmax l/h: 22
- Pmax barg: 15
- Polyethylene tanks
- Relief valves and back pressure valves
- Safety relief valve
- Injection valve
- Foot valve
- Pulsation dampeners
- Calibration pot
