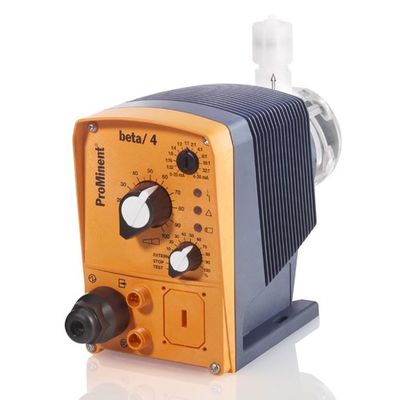

BetaSolenoid-Driven Metering Pump

SHARE

Capacity range 0.74 – 32 l/h, 25 – 2 bar. All-purpose solenoid-driven metering pump for metering liquid media in water treatment and chemical processes: Solenoid-driven metering pump Beta®. Cost-effective, overload-proof, adaptable to existing signal transducers. Equipped with all the features and properties for superior process management. A range of different pump types and material combinations are available for virtually all metering applications. The virtually wear-free solenoid drive guarantees an exceptionally long service life even under maximum load.

Most popular related searches
  • Optional external control via 0/4 – 20 mA and potential-free contacts with pulse step-up and step-down of 64:1 to 1:64
  • Simple adjustment of metering capacity via stroke rate and stroke length
  • Adaptation to existing signal transducers by external control via potential-free contacts with pulse step-up and step-down
  • Suitable for use with almost all liquid chemicals thanks to the available material combinations: PP, PVDF, clear acrylic, PTFE and stainless steel
  • Self-bleeding dosing head design in clear acrylic/PVC and PP
  • Virtually wear-free solenoid drive: economical and overload-proof
  • External control via potential-free contacts with pulse step-up and step-down to adapt to existing signal transducers of 64:1 to 1:64
  • Optional external control via 0/4 – 20 mA and potential-free contacts with pulse step-up and step-down of 32:1 to 1:32
  • Stroke rate adjustment in 10% increments of 10 – 100% corresponds to 18 – 180 strokes/minute
  • Continuous stroke length adjustment of 0 – 100% (recommended 30 – 100%)
  • Connector for 2-stage level switch
  • Wide-range electrical connection: 100 – 230 V, 50/60 Hz
  • Optional relay module, can also be retrofitted easily and securely
  • Low voltage design 12 – 24 V DC
