Maniks - Solid State Sequential Controller

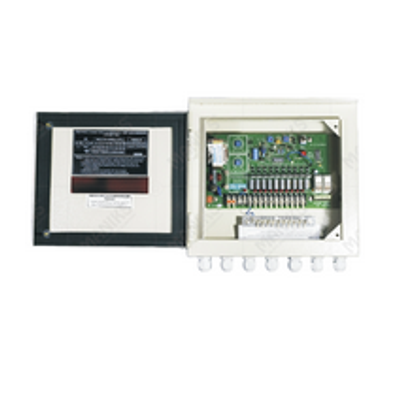

The Maniks Solid State Sequential Controller is a precision-engineered sequential timer designed to automate and optimize pulse jet cleaning cycles in industrial dust collector systems. With reliable semiconductor logic, LED indicators, and adjustable sequencing, this sequential timer controller delivers consistent performance, energy efficiency, and extended filter life across a wide range of applications, from dust filtration systems to burners, boilers, and AC units.
- Accurate timing and sequencing logic
- LED display for live valve status
- Adjustable ON/OFF timing
- Maintenance-free solid-state performance
- 20+ years of expertise in air pollution control and automation solutions
- Trusted by global OEMs for sequential controllers in filtration, HVAC, and boiler systems
- Custom-engineered solutions with in-house R&D
- End-to-end support from product selection to installation
The sequential timer energizes each connected solenoid valve for a preset “ON” duration, followed by an adjustable “OFF” interval before the next valve activates. This cycle repeats automatically, ensuring a consistent pulse-jet cleaning sequence.
Two operation modes:
- Automatic Reset: The sequential timer controller resets to the first valve when power is restored.
- Remote Control Mode: The operation can be started or paused using an external potential-free contact, ideal for centralized system control.
- Adjustable Sequencing Steps: Configurable from 2 to 10 valve outputs
- Independent Timing Control:
- Pulse ON Time (Duration): Adjustable
- Pulse OFF Time (Interval): Adjustable
- Silicon Semiconductor Logic: Ensures reliable timing and logic functions
- LED Display: Visual indication of valve energization and power status
- Compact & Robust Design: Built for industrial environments
The Maniks sequence controller ensures your industrial equipment runs cleaner, smoother, and more efficiently, whether it’s part of a pulse jet system or a boiler sequence controller setup.
- Enhanced filter cleaning performance and air quality
- Reduced compressed air and power consumption
- Simplified maintenance and troubleshooting
- Long service life with stable operation
- Easy integration into new or existing systems
- Baghouse and Cartridge Dust Collectors
- Reverse Pulse Jet Cleaning Systems
- Sequence Controller for Burner and Boiler Automation Systems
- AC Sequence Controller for Air Handling Units (AHU) and HVAC systems
- Industrial Filtration in Cement, Steel, Pharma, Chemical, and Power Plants
