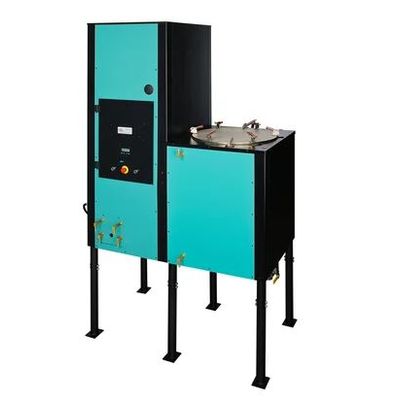

CBG Biotech - Model SolvTrue F2500 -Solvent Recycler

The SolvTrue F2500 Solvent Recycler is a 25 gallon (95 liter) fractional distillation recycler with closed loop operating system, safe hands hydraulic lift tank lid and automatic shutoff. This system processes acetone and other solvents used in industrial applications.

Most popular related searches

solvent recycling

industry solvent recycling

industrial solvent recycler

fractional distillation

Microprocessor controlled with easy-to-read LCD display
Custom programming options for special solvent requirements or additional solvents
No additional water hookup required
Designed and built for multiple shift operations
Auto shutoff safety features
Built to C1D2 Specifications - Optional C1D1 Construction Available
UL2208 certified for use in non-hazardous environments

Capacity

25 gallon (95 liter)

Dimensions:

34" W x 58.75" L x 100.5" H (86 cm W x 149 cm H x 255 cm D)

Fill Pump:

Push button – Standard

Computer operated – Optional

Cooling:

Air cooled

Chilled – Optional

Electrical Configurations:

220/240V/3PH/60Hz – Standard

440/480V/3PH/60Hz – Optional

208V/1PH/60Hz – Optional

Construction:

Stainless steel

Mounting:

Legs (101.5" high) – Standard

Extended legs (111" high) – Optional

Other:

Vacuum distillation – Optional
