Gasser Apparatebau - Solvents Supply and Disposal System

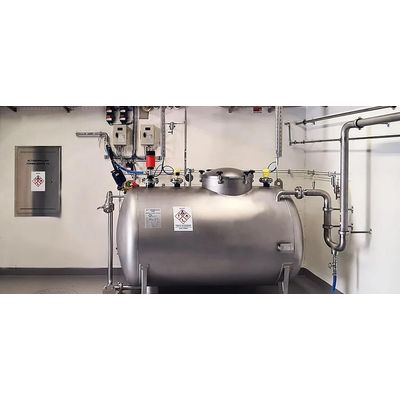

There are many things to consider when extracting used solvents such as xylene and ethanol, which fall under the “highly flammable” category. For this reason, we have already been commissioned several times to create corresponding systems. Be it systems with stationary extraction points for used solvents, or mobile devices with which the solvents are extracted and transported away for disposal. In order to detect any leakage and minimize the risk of fire double-walled lines with negative pressure monitoring are used. The storage tank can also be supplied double-walled and low pressure monitored. The solvent supply is realised by plastic storage containers with explosion-proof drum pumps and mixing pumps. With the aid of the dispensing pumps and suitable dispensing nozzles, the solvents can be transferred to canisters.
This product, developed by the company Gasser Apparatebau und Laborzubehör, is specially designed for the disposal of small amounts of solvents. The mobile compressed air operated solvent suction device is used for the safe disposal and safe transport of solvents such as ethanol, xylene, dye etc to the disposal point. The suction device was developed as a closed system based on the given guidelines. The air contained with xylene, ethanol or formalin vapors, which escapes from the tank during suction, is specifically blown out via a pipe through an activated carbon filter.
With optical level indicator and automatic switch-off when the device tank is full
- High delivery rate of approx. 57 liters / min.
- Conductive suction hose DN 8 x 2.5 m with stainless steel end piece and ball point
- Conductive drainage hose DN 12 x 2.5 m, equipotential bonding cable with grounding clamp
- Conductive roles, low-maintenance and easy-to-maintain construction
- Integrated filter pressure reducer with automatic condensate drain and pressure gauge
- All weld seams made gas-tight with vacuum test
- Overhead dome cover with an inner Ø of approx. 150 mm
- Tank bottom and lid shaped like a cap for complete emptying
