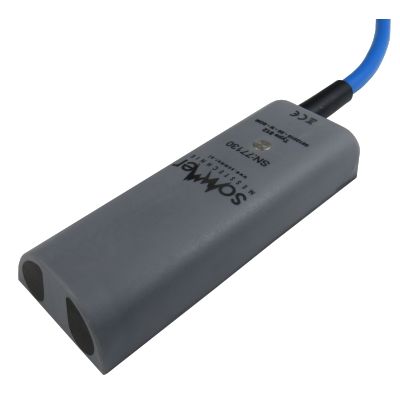

SOMFLOW - Ultrasonic Water and Wastewater Velocity Sensor
The SOMFLOW continuously measures the water or effluent velocity in ducts, pipes and open canals in sewer networks, water treatment plants and industrial facilities. The twin 1-MHz ultrasonic Doppler transceiver determines flow velocities from as low as 0.01 m/s to 5 m/s.
Most popular related searches
flow velocity
water treatment plant
data logger
doppler sensor
wastewater monitoring
sewer network
water treatment
continuous water monitoring
wastewater velocity
water velocity sensor
- Flow velocity range 0.01 ... 5 m/s
- Versatile installation options
- Waterproof housing that is resistant to aggressive liquids
- Simple integration into existing data acquisition and control systems
- Easily linked to data loggers
- Multiple data interfaces: RS-485, Modbus RTU, SDI-12
- Measurement range Bi-directional 0.01 to 5 m/s (0.03 to 16.4 ft/s)
- Accuracy ± 2 % of reading if V ≥0.5m/s (1.64 ft/s)± 0.01 m/s (± 0.03 ft/s) if V<0.5m/s (1.64 ft/s)
- Resolution 1 mm/s (0.003ft/s)
- Minimum fluid level 5 mm (0.59 in) to 20mm (0.79in) above base of sensor, provided transducers fully wetted
- Immersion up to 1 bar
- Protection rating IP68
- Principle Doppler sensor using twin 1 MHz transducers
- Output RS-485, Modbus RTU, SDI-12 (flow velocity, temperature, quality, diagnostics)
- Power supply 9 to 28 VDC
- Power consumption standby 14 mA, measurement 25 mA (@12 VDC)
- Operating temperature -20 to +60 °C (fluid non-freezing)
- Storage temperature -20 to +70 °C
- Size L x B x H 122 x 46 x 19 mm
- Weight 1.1 kg (incl. 10-m cable)
- Material PVDF, polyurethane, 316 Stainless steel
